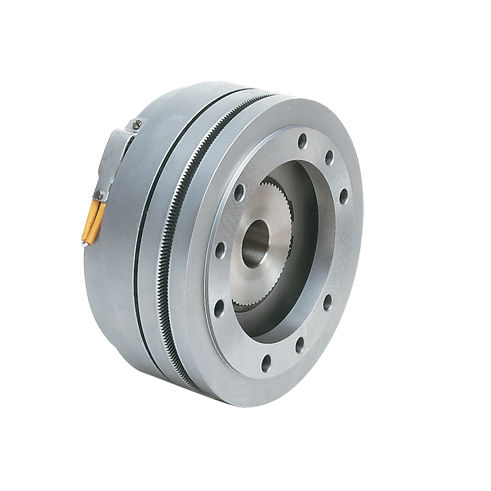

Disc brake EC-N/Z-F
electromagneticspringsafety

disc brake
disc brake
disc brake
disc brake
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic, spring
Other characteristics
safety, emergency, parking
Torque

Max.: 150 Nm
(110.6343 ft.lb)

Min.: 25 Nm
(18.4391 ft.lb)

Rotational speed

Max.: 4,500 rpm
(28,274.33 rad.min-1)

Min.: 2,000 rpm
(12,566.37 rad.min-1)

Power

Max.: 135 W

Min.: 22 W

Description

Tooth type spring-applied coupling. Tension 24 V dc – 0 + 15% Used for oil bath and dry applications. Emergency or parking brake; engaged at a standstill or at very low rpm. The Magnet cup (1) is fastened onto a fixed support, while the toothed housing (9) is connected to the kinematic system to be braked.
