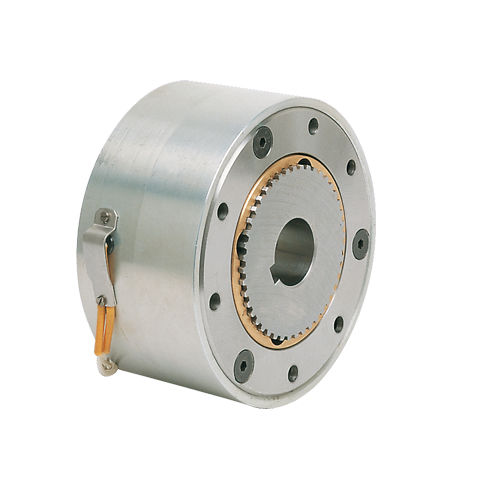

Disc brake EMF-N electromagneticspringsafety
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic, spring
- Other characteristics
- safety, emergency, parking
- Torque
Min.: 25 Nm
(18.4391 ft.lb)Max.: 150 Nm
(110.6343 ft.lb)- Rotational speed
2,000 rpm, 2,500 rpm, 3,000 rpm, 3,500 rpm
(12,566.37 rad.min-1, 15,707.96 rad.min-1, 18,849.56 rad.min-1, 21,991.15 rad.min-1)- Power
Min.: 40 W
Max.: 90 W
Description
Single-disc, spring-applied electromagnetic brake.
Tension 24 V dc – 0 + 15%
Used for dry applications.
Emergency or parking brake, with very little play in locked position.
The Magnet cup (1) is fastened onto a fixed support, while the toothed hub (7) is splined to the shaft to be braked.
Catalogs
Electromagnetic clucthes and brakes
162 Pages
