Disc brake FN/FC-FA electromagneticspring activatedsafety
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic, spring activated
- Other characteristics
- safety, flange-mounted, emergency, parking
- Torque
Min.: 6 Nm
(4.425373 ft.lb)Max.: 350 Nm
(258.146752 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 6,000 rpm
(37,699.1118 rad.min-1)- Power
Min.: 13 W
Max.: 135 W
Description

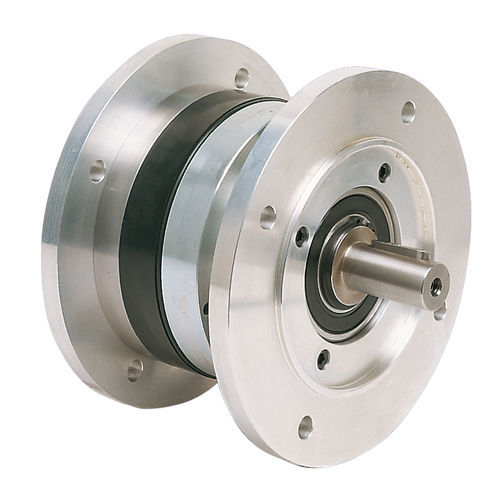

Single-disc, spring-applied electromagnetic brake, flanged.
Tension 24 V dc – 0 + 15%
Used for dry applications, as an emergency or parking brake.
Features a shaft and flanges made to IEC standards for quick and easy assembly (e.g. between the engine and reduction gear).
