Disc clutch ESAL electromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic
- Torque
Max.: 500 Nm
(368.781075 ft.lb)Min.: 1.8 Nm
(1.327612 ft.lb)- Rotational speed
Max.: 10,000 rpm
(62,831.8531 rad.min-1)Min.: 2,000 rpm
(12,566.3706 rad.min-1)- Power
Max.: 61 W
Min.: 6 W
Description

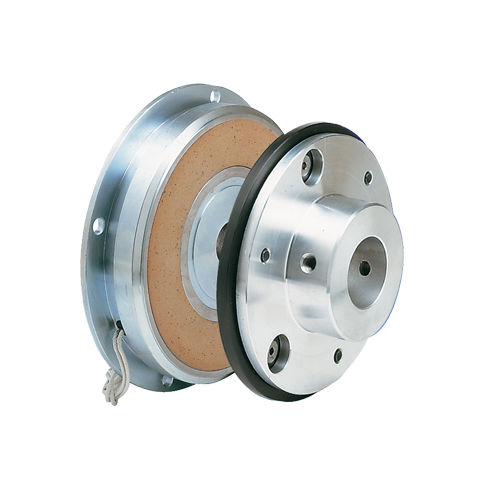

Single-disc electromagnetic clutch with laminated armature and external hub.
Tension 24 V dc – 0 + 15%
Used for dry applications.
Available also with external hub (Pic.2)
Motion is transmitted between the shaft splined to the rotor (4), and the laminated armature (3), to which can be connected a pulley, a cogwheel etc.
