Disc clutch EC/Ctoothedelectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc, toothed
- Operation
- electromagnetic
- Torque
Min.: 22 Nm
(16.226367 ft.lb)Max.: 1,800 Nm
(1,327.611869 ft.lb)- Rotational speed
Min.: 2,200 rpm
(13,823.0077 rad.min-1)Max.: 4,000 rpm
(25,132.7412 rad.min-1)- Power
Min.: 13 W
Max.: 92 W
Description

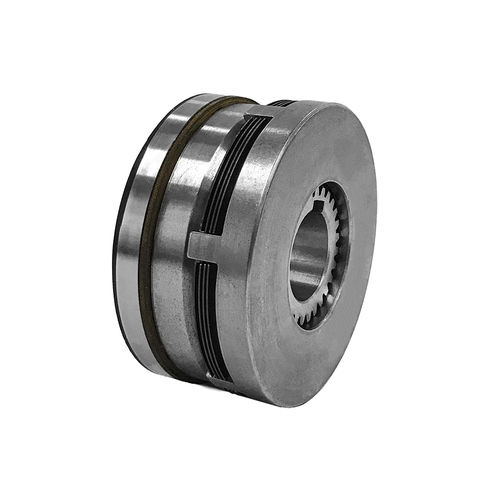

Electromagnetic multi disc clutch with collector ring and cup housing
Tension 24 V dc – 0 + 15%
Application: wet run – dry application in presence of very low rpm only
Motion transmitted between a shaft keyed on the toothed hub and the cup housing to the which one can be fixed gear, hub ,etc
