Disc clutch EMSL/DF-Celectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic
- Torque
Max.: 8,000 Nm
(5,900.497194 ft.lb)Min.: 45 Nm
(33.190297 ft.lb)- Rotational speed
Max.: 6,000 rpm
(37,699.1118 rad.min-1)Min.: 1,200 rpm
(7,539.8224 rad.min-1)- Power
Max.: 576 W
Min.: 35 W
Description

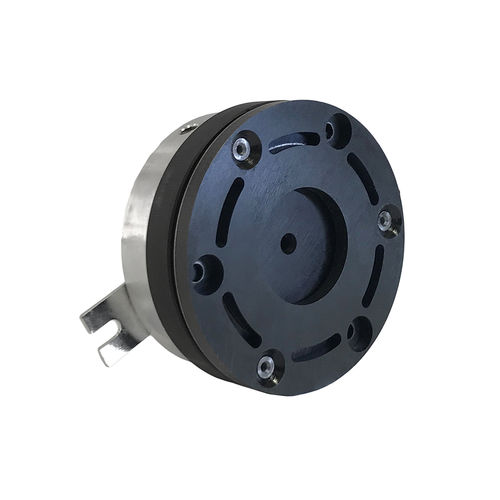

4 POLE FACE electromagnetic clutch EMSL/DF-C, EMSL/DF-C-ME
Complete version with magnet supported by bearings
Tension 24 V dc – 0 + 15%
Used mainly for dry applications.
Available also with hub (EMSL/DF-C-ME)
Motion is transmitted by a rotor, assembled on the drive shaft, to the armature that can be connected to a flange, pulley or crown wheel, etc.
