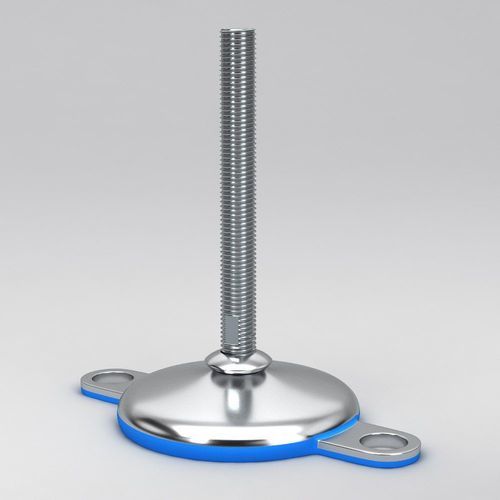

Equipment foot HLF series

for conveyorfor machine toolsfor food industry machinery

Overview
Levelling feet HLF series with two floor locking plates and a fully-threaded spindle provide secure anchoring, precise height adjustment and vibration reduction for industrial equipment. Designed for hygienic and corrosive environments, these feet suit food, pharmaceutical and general industrial processing lines.

Features & advantages

• Two floor locking plates for secure anchoring and increased stability.
• Fully-threaded spindle for accurate height adjustment and reliable levelling on uneven floors.
• Rounded hygienic design for easy cleaning and compliance with sanitary areas.
• Vulcanized NBR rubber base reduces vibration and provides anti-slip properties.
• Compensation of up to 10° slope for floor or equipment misalignment.

Materials

• Base plate: Stainless steel AISI 304 or AISI 316.
• Spindle: Stainless steel A2-70 or A4-70.
• Rubber base: NBR (nitrile rubber, CAS no. 9005-98-5), vulcanized, FDA compliant (FDA CFR 21 177.2600) with batch ID for traceability.
• All materials are highly resistant to chemicals, common cleaning agents, oils and fats.

Sizes (Base types)
Base type | Base Diameter D | Nom. Load
HLF 62 | 60 mm | 7.000 N
HLF 82 | 80 mm | 15.000 N
HLF 102 | 100 mm | 20.000 N
HLF 122 | 120 mm | 30.000 N

HLF Spindle threads
M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48

HLF Spindle length (L)
50 mm | 70 mm | 100 mm | 120 mm | 150 mm | 180 mm | 200 mm | 230 mm | 280 mm | 330 mm

Customization & options
Other spindle lengths and thread forms (including inch threads and special forms such as trapezoidal) are available on request. For large orders the base and spindles can be supplied separately to allow flexibility when multiple spindle sizes are required.

Applications
Suitable for conveyors, mixers, filling machines and heavy production lines in food processing, pharmaceuticals, biotechnology and packaging where hygienic, corrosion‑resistant levelling is required.

Technical specifications

• Series: HLF series.
• Design: Hygienic rounded design with two floor locking plates.
• Nominal loads: 7.000 N to 30.000 N depending on base type.
• Base diameters: 60 mm, 80 mm, 100 mm, 120 mm.
• Spindle threads: M12–M48.
• Spindle lengths: 50–330 mm (multiple options).
• Base plate materials: AISI 304 or AISI 316 stainless steel.
• Spindle materials: A2-70 or A4-70 stainless steel.
• Rubber base: NBR, vulcanized, FDA CFR 21 177.2600 compliant.
• Max slope compensation: up to 10°.
