Machine foot HLF series

equipmentfor conveyorfor food industry machinery

Product overview

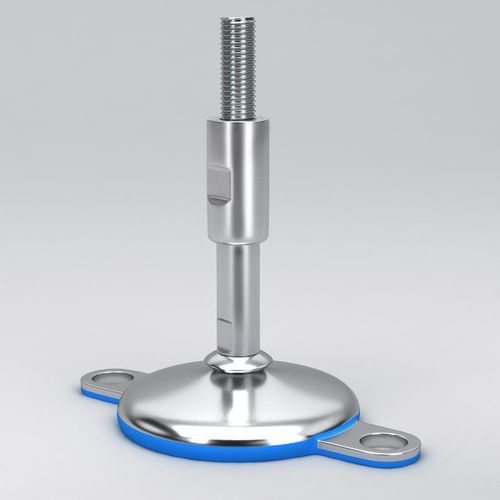

Hygienic levelling feet (HLF series) engineered to combine machine stability and sanitary design for food, pharmaceutical and packaging environments. Features two floor locking plates for secure anchoring and a protected/sealed spindle sleeve to prevent ingress of dirt, moisture and cleaning agents, reducing maintenance and extending service life.

Features and advantages

• Two floor locking plates for firm anchoring and reduced movement and vibration during operation.
• Protected (sleeved/sealed) spindle prevents contaminants and cleaning agents from entering the threaded mechanism.
• Rounded, hygienic design with smooth, polished surfaces to minimise contamination points and simplify washdown.
• Rubber base for vibration damping and anti-slip performance.
• Adjustable to accommodate slopes up to 10° on floors or equipment.

Materials

• Base plate: Stainless steel AISI 304 or AISI 316.
• Spindle: Stainless steel A2-70 or A4-70.
• Rubber base: NBR (nitrile rubber, CAS 9005-98-5), vulcanized FDA rubber (FDA CFR 21 177.2600) supplied with unique batch ID for traceability.
• All materials selected for high resistance to common cleaning agents, chemicals, oils and fats.

Sizes and capacities (base types)
Base type | Base diameter D | Nom. load
HLF 62 | 60 mm | 7,000 N
HLF 82 | 80 mm | 15,000 N
HLF 102 | 100 mm | 20,000 N
HLF 122 | 120 mm | 30,000 N

EHLF spindle and sleeve diameters
M16, M20, M24, M30, M36, M42, M48

Spindle length (L) and sleeve length (H) — typical combinations
L = 135 mm, H = 55 mm — Min 80 mm to Max 120 mm
L = 175 mm, H = 75 mm — Min 100 mm to Max 160 mm
L = 215 mm, H = 95 mm — Min 120 mm to Max 200 mm
L = 255 mm, H = 115 mm — Min 140 mm to Max 240 mm
L = 295 mm, H = 125 mm — Min 180 mm to Max 280 mm

Delivery options

• Bases and spindles can be supplied separately for large orders to increase installation flexibility.
• Thread types and spindle lengths customizable on request (metric, inch threads, special forms such as trapezoidal).

Applications

• Food processing equipment
• Pharmaceutical manufacturing machinery
• Packaging machines, conveyors, mixers and other hygienic-industry equipment

Technical specifications

• Series: HLF / EHLF
• Base diameters: 60, 80, 100, 120 mm
• Nominal loads: 7,000 N — 30,000 N depending on base type
• Spindle diameters: M16–M48
• Spindle/sleeve length combinations and adjustable ranges as listed above
• Max slope compensation: up to 10°
• Certifications/support: design supports EHEDG and 3-A sanitary standards; materials and design support HACCP guidelines
• Chemical and cleaning resistance: resistant to common cleaning agents, oils and fats
