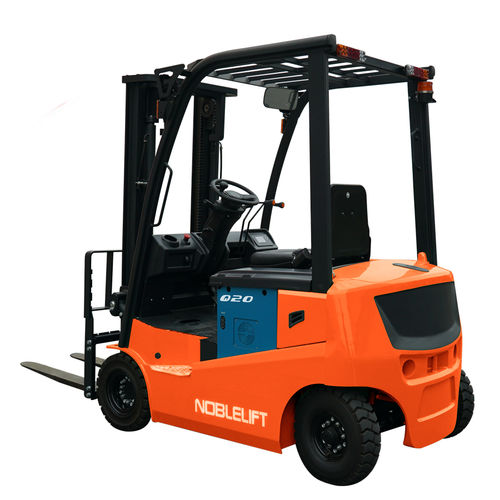

Electric forklift FE4P16/20Qride-onindustrial4-wheel
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- industrial
- Other characteristics
- 4-wheel, for medium loads, light-duty
- Carrying capacity
1,600 kg, 2,000 kg
(3,527.4 lb, 4,409.2 lb)- Lifting height
6,000 mm
(236.22 in)- Overall width
1,150 mm
(45.3 in)- Overall length
3,050 mm, 3,200 mm
(120.1 in, 126 in)- Load center distance
500 mm
(19.7 in)- Weight without load
2,940 kg, 3,180 kg
(6,481.6 lb, 7,010.7 lb)- Track width front
980 mm
(38.6 in)- Track width rear
920 mm
(36.2 in)- Height of mast when lowered
1,985 mm
(78.1 in)- Free lift
130 mm
(5.1 in)- Overall height with mast raised
3,990 mm
(157.1 in)- Height to top of overhead guard
2,075 mm
(81.7 in)- Seat height
1,065 mm
(41.9 in)- Tow couplig height
530 mm
(20.9 in)- Length to fork face
2,130 mm
(83.9 in)- Fork carriage width
1,040 mm
(40.9 in)- Ground clearance under mast with load
98 mm
(3.9 in)- Ground clearance at center of wheelbase with load
100 mm
(3.9 in)- Turning circle radius
1,990 mm
(78.3 in)- Travel speed
11 km/h, 12 km/h, 13 km/h
(6.8 mph, 7.5 mph, 8.1 mph)- Lifting speed
0.3 m/s, 0.4 m/s
(0.984 ft/s, 1.312 ft/s)- Lowering speed
0.4 m/s, 0.5 m/s
(1.312 ft/s, 1.64 ft/s)- Gradeability
12 %, 15 %
- Rated output
7 kW
(9.5 hp)- Maximum operating pressure
14.5 MPa
- Oil flow
30 l/min
(7.9 us gal/min)- Noise level
72 dB
Description
The design of the Q series is based on original Noblelift and N sériés with combination of the advantages to meet the light and medium applications with great comfortness and efficieny. The truck is optional to eighter Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard.the truck is idéal to be used in limited spaces such as entering elevator.
Catalogs
FE4P 16/20Q
4 Pages
