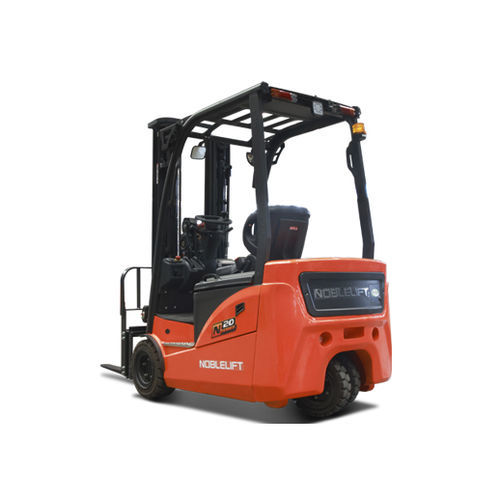

Electric forklift FE3D16/18/20N1
ride-onnarrow-aisleindoor

Electric forklift - FE3D16/18/20N1 - Noblelift Intelligent Equipment Co., Ltd. - ride-on / narrow-aisle / indoor
Electric forklift - FE3D16/18/20N1 - Noblelift Intelligent Equipment Co., Ltd. - ride-on / narrow-aisle / indoor
Add to favorites
Compare this product
Go to the Noblelift Intelligent Equipment Co., Ltd. website for more information

Characteristics

Motor type
electric
Operator
ride-on
Applications
for materials handling, for warehouse, indoor, narrow-aisle
Other characteristics
compact, 3-wheel
Carrying capacity

Min.: 1,600 kg
(3,527.4 lb)

Max.: 2,000 kg
(4,409.2 lb)

Overall width

Min.: 1,084 mm
(42.7 in)

Max.: 1,145 mm
(45.1 in)

Overall length

Min.: 2,925 mm
(115.2 in)

Max.: 3,080 mm
(121.3 in)

Weight without load

Min.: 3,080 kg
(6,790.2 lb)

Max.: 3,400 kg
(7,495.7 lb)

Height of mast when lowered

1,995 mm
(78.5 in)

Free lift

120 mm
(4.7 in)

Turning circle radius

1,620 mm
(63.8 in)

Travel speed

15 km/h
(9.3 mph)

Gradeability

Min.: 15 %

Max.: 20 %

Description

Product
FE3D16/18/20N1 - 1600/1800/2000 kg N1 Series 3-Wheel Electric Forklift

Description
Compact three-wheel electric forklift designed for indoor material handling and operation in narrow aisles. Available in three rated load variants. Product images available showing machine details (image files: 3DN1-详情-01.jpg, 3DN1-详情-02.jpg, 3DN1-详情-03.jpg, 3DN1-详情-04.jpg).

Parameters (excerpt)
Manufacturer’s type designation: FE3D16N1 / FE3D18N1 / FE3D20N1
Load capacity / rated load (kg): 1600 / 1800 / 2000
Service weight incl. battery (kg): 3080 / 3200 / 3400
Lowered mast height (mm): 1995 / 1995 / 1995
Free lift (mm): 120 / 120 / 120
Overall length (mm): 2925 / 3080 / 3080
Overall width (mm): 1084 / 1084 / 1145
Fork dimensions (s/e/l) (mm): 35/100/920 / 40/100/1070 / 40/100/1070
Turning radius (mm): 1620 / 1620 / 1620
Travel speed, laden/unladen (km/h): 15 / 15
Max. gradient performance, laden/unladen (%): 15 / 20
Battery (Li-ion) nominal voltage/capacity K5 (V/Ah): 76.8 / 150 (options 277 / 412 indicated)

Technical specifications
  • Series: N1 Series 3-Wheel Electric Forklift
  • Model variants: FE3D16N1, FE3D18N1, FE3D20N1
  • Rated load options: 1600 kg, 1800 kg, 2000 kg
  • Service weight (including battery): 3080 kg / 3200 kg / 3400 kg
  • Lowered mast height: 1995 mm
  • Free lift: 120 mm
  • Overall length: 2925 mm / 3080 mm
  • Overall width: 1084 mm / 1145 mm
  • Fork dimensions (thickness/width/length): 35/100/920 mm; 40/100/1070 mm
  • Turning radius: 1620 mm
  • Travel speed (laden/unladen): 15 km/h / 15 km/h
  • Gradeability (laden/unladen): 15% / 20%
  • Battery (V/Ah nominal K5): Li-ion: 76.8 V / 150 Ah (options 277 / 412)
