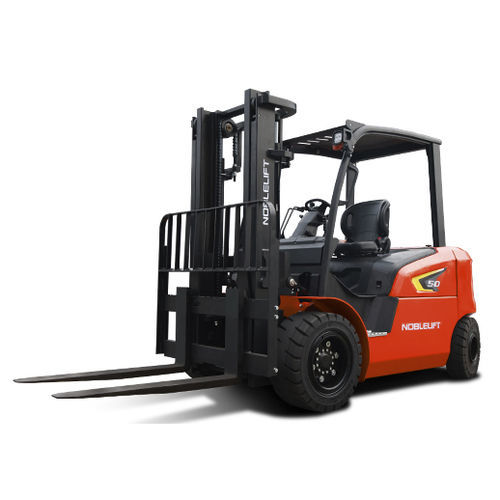

Electric forklift FEP20/25/30/35NP

ride-onindoorfor warehouse

Product
FEP20/25/30/35NP — NP Series electric forklift with rated loads from 2000 to 3500 kg, designed for industrial material handling and warehouse operations.

Description
The NP Series offers four rated-load variants to cover light to medium-heavy lifting tasks. Models feature AC/PMSM motor control, multiple battery configurations and identical travel speeds for efficient throughput. Product images and a comparative parameter list facilitate model selection.

Parameters

• Manufacturer's type designation: FEP20-NP | FEP25-NP | FEP30-NP | FEP35-NP
• Load capacity / rated load (kg): 2000 | 2500 | 3000 | 3500
• Service weight including battery (kg): 3790 | 3942 | 4573 | 4748
• Free lift (mm): 140 | 140 | 145 | 145
• Load centre distance (mm): 500 (all models)
• Fork dimensions (s/e/l) (mm): 40/122/1070 | 40/122/1070 | 45/122/1070 | 50/122/1070
• Turning radius (mm): 2100 | 2100 | 2220 | 2220
• Travel speed, laden/unladen (km/h): 18/19 (all models)
• Max. gradient performance, laden/unladen (%): 20/20 | 20/20 | 20/20 | 15/20
• Battery voltage, nominal capacity K5 (V/Ah): 80/280/324 | 80/280/324 | 80/280/324/412 | 80/280/324/412
• Additional battery options (V/Ah): shared options 80/200/268/400/536
• Motor control mode: AC/PMSM (all models)

Technical specifications

• Series: NP Series electric forklift for industrial applications
• Models: FEP20-NP, FEP25-NP, FEP30-NP, FEP35-NP
• Rated loads from 2000 kg to 3500 kg to match warehouse and production needs
• Service weight varies by model and includes battery
• Free lift suited for pallet handling: 140–145 mm
• Standard load centre distance: 500 mm
• Fork options per model for different load types
• Turning radius optimized for indoor operation
• Travel speed 18/19 km/h for consistent logistics flow
• Multiple battery configurations for duty-cycle flexibility
• AC/PMSM motor control for efficient traction and control
