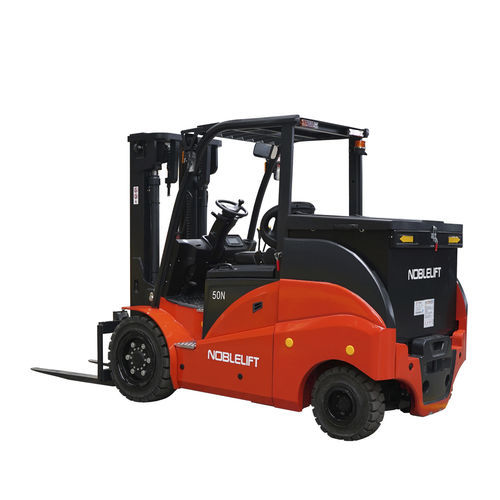

Electric forklift FE4P N seriesride-onindustrial4-wheel
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- industrial
- Other characteristics
- 4-wheel, heavy-duty
- Carrying capacity
5,000 kg
(11,023.1 lb)- Lifting height
Min.: 2,000 mm
(78.74 in)Max.: 6,000 mm
(236.22 in)- Overall width
1,450 mm
(57.1 in)- Overall length
3,962 mm
(156 in)- Load center distance
500 mm
(19.7 in)- Weight without load
7,290 kg
(16,071.7 lb)- Axle loading with maximum load front
11,060 kg
(24,383.1 lb)- Axle loading with maximum load rear
1,230 kg
(2,711.7 lb)- Axle loading without load front
3,240 kg
(7,143 lb)- Axle loading without load rear
4,050 kg
(8,928.7 lb)- Track width front
1,200 mm
(47.2 in)- Track width rear
1,040 mm
(40.9 in)- Height of mast when lowered
2,260 mm
(89 in)- Free lift
150 mm
(5.9 in)- Overall height with mast raised
4,117 mm
(162.1 in)- Height to top of overhead guard
2,265 mm
(89.2 in)- Seat height
1,200 mm
(47.2 in)- Tow couplig height
490 mm
(19.3 in)- Length to fork face
2,892 mm
(113.9 in)- Fork carriage width
1,380 mm
(54.3 in)- Ground clearance under mast with load
135 mm
(5.3 in)- Ground clearance at center of wheelbase with load
165 mm
(6.5 in)- Turning circle radius
2,650 mm
(104.3 in)- Travel speed
13 km/h, 14 km/h
(8.1 mph, 8.7 mph)- Gradeability
15 %, 20 %
- Rated output
13.5 ch
(13.5 hp)- Maximum operating pressure
14.5 psi
- Oil flow
50 us gal/min
(189.3 l/min)- Noise level
77 dB
Description
50N is the strength of N series forklift truck family, which bears a load of 5 tons. The whole truck adopts automobile control mode, which makes the driver's operating space comfortable, and saves effort to import multi-functional integrated LCD display.
The state and fault information of the vehicle is clear at a glance. The whole vehicle lights are LED, with warning lights, so that you can operate freely at night. The motor uses AC motor, maintenance-free, strong power. Traditional DC motors need to replace carbon brushes frequently, while Novotel AC motors need not replace carbon brushes. With speed sensor and
temperature sensor, the protection function is complete, and the reliability and life are greatly
improved.Intelligent charger, with self-diagnosis, automatic cut-off, fault alarm, initial charging,
balanced charging and other powerful functions.
