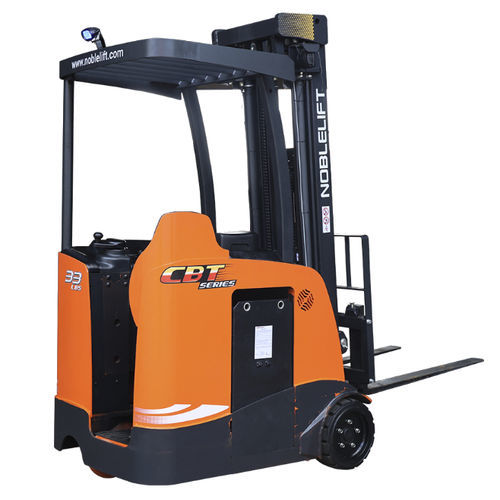

Electric forklift CBT15/18
stand-onnarrow-aislefor warehouse

Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse
Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse
Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse - image - 2
Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse - image - 3
Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse - image - 4
Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse - image - 5
Electric forklift - CBT15/18 - Noblelift Intelligent Equipment Co., Ltd. - stand-on / narrow-aisle / for warehouse - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
stand-on
Applications
for warehouse, narrow-aisle, precision, for containers
Other characteristics
counterbalanced, compact, high-speed, rugged
Carrying capacity

1,500 kg, 1,800 kg
(3,306.9 lb, 3,968.3 lb)

Lifting height

3,000 mm, 6,200 mm
(118.11 in, 244.09 in)

Overall width

1,130 mm
(44.5 in)

Weight without load

4,150 kg, 4,520 kg
(9,149.2 lb, 9,964.9 lb)

Turning circle radius

1,406 mm, 1,610 mm
(55.4 in, 63.4 in)

Description

The Noblelift CBT15 Stand Up Counterbalanced Forklift is your ideal choice for dock applications, narrow aisle or confined corner such as drive-in rack, container applications for distribution centers, warehouses, manufacturing, retail stores and etc. Small turning radius comparing to traditional Counterbalanced forklifts, compact footprint and agile steering allows for precise maneuvering in tight spaces. Standard, dual independent AC drive motors with separate drive controllers provide optimal maneuverability while turning. AC drive and German gearbox technology ensure excellent travel speed and control with CANbus communication, no maintanance and long service life. Tilt control system: can limit the tilt of the goods when the forks are high lifted to prevent roll over, and there is a one-button FORK TILT LEVELING function to ensure safety . Brake and Presence Pedal - promotes safe operation with a dual-pedal design that stops operators from using only one foot to operate the truck. Protects both the truck and the operator by automatically applying the brake when the operator's left foot is removed from the brake pedal. The roomier cabin and ability to adjust the position of the feet provide postural relief during travel. Safety protection pedal: When the operator steps down the protection pedal, the forklift will slow down. The side stand design is convenient for the operator to get on and off the vehicle, especially suitable for the working conditions with picking function, while providing a wide visibility and reducing the blind area of operation.

VIDEO
