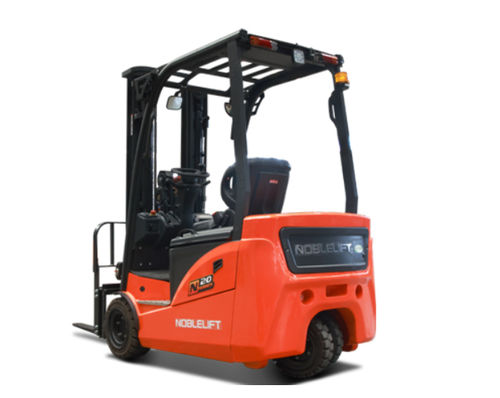

Electric forklift N1 Series

ride-onnarrow-aisleindoor

Overview
FE3D16/18/20N1 — 3-wheel electric forklift with rated load 1600/1800/2000 kg. Compact three-wheel chassis for maneuvering in narrow aisles and mixed indoor/outdoor use.

Description
Product detail images available on the page: 3DN1-详情-01.jpg, 3DN1-详情-02.jpg, 3DN1-详情-03.jpg, 3DN1-详情-04.jpg. Typical applications include warehouses, logistics hubs and production lines where a small turning radius and stable load handling are required.

Parameter (excerpt)
Manufacturer's type designation | FE3D16N1 | FE3D18N1 | FE3D20N1
Load capacity / rated load (kg) | 1600 | 1800 | 2000
Service weight incl. battery (kg) | 3080 | 3200 | 3400
Lowered mast height (mm) | 1995 | 1995 | 1995
Free lift (mm) | 120 | 120 | 120
Overall length (mm) | 2925 | 3080 | 3080
Overall width (mm) | 1084 | 1084 | 1145
Fork dimensions (s/e/l mm) | 35/100/920 | 40/100/1070 | 40/100/1070
Turning radius (mm) | 1620 | 1620 | 1620
Travel speed, laden / unladen (km/h) | 15 / 15 | 15 / 15 | 15 / 15
Max. Gradient performance, laden / unladen (%) | 15 / 20 | 15 / 20 | 15 / 20
Battery voltage, nominal capacity K5 (V/Ah) | Li-ion: 76.8/150 (277/412)

Technical specifications

• Manufacturer's type designation: FE3D16N1 / FE3D18N1 / FE3D20N1
• Rated load (Q): 1600 kg (FE3D16N1), 1800 kg (FE3D18N1), 2000 kg (FE3D20N1)
• Service weight including battery: 3080 kg / 3200 kg / 3400 kg
• Lowered mast height: 1995 mm (all models)
• Free lift: 120 mm (all models)
• Overall length: 2925 mm (FE3D16N1), 3080 mm (FE3D18N1 & FE3D20N1)
• Overall width: 1084 mm (FE3D16N1 & FE3D18N1), 1145 mm (FE3D20N1)
• Fork dimensions (s/e/l): 35/100/920 mm (FE3D16N1); 40/100/1070 mm (FE3D18N1 & FE3D20N1)
• Turning radius: 1620 mm (all models)
• Travel speed (laden / unladen): 15 / 15 km/h (all models)
• Max. gradient performance (laden / unladen): 15% / 20% (all models)
• Battery: Li-ion 76.8 V / 150 Ah (equivalent capacities: 277 / 412)
