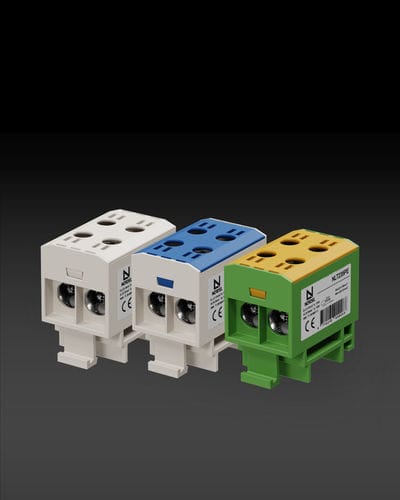

4-wire connection terminal NLT235 series

• Tightening torque values clearly marked on the connector cover • Dedicated areas for component marking • High voltage rating: up to 1000 V AC and 1500 V DC • Housing made of UL 94 V-0 flame-retardant material • Serrated contact surface inside the barrel ensures secure and stable connection • Class A short-circuit tested • Fast and easy installation with metal fixation fasteners • Bolts treated with anti-oxidation grease for improved conductivity and durability Parameter - Value Conductor cross-section (Cu / Al) - 2,5 – 35 mm² Nominal voltage (AC / DC) - 1000 / 1500 V IEC voltage (AC / DC) - 1000 V Nominal current - 135 A (Cu) / 120 A (Al) IEC current - 115 A (Cu) / 90 A (Al) Dimensions (W / H / L) - 22 / 40 / 45 mm Screw / hex key - No. 4 Tightening torque - 3 Nm (2,5–16 mm²) / 6 Nm (25–35 mm²) Mounting - DIN rail Weight - 44 g Package - 6 pcs
