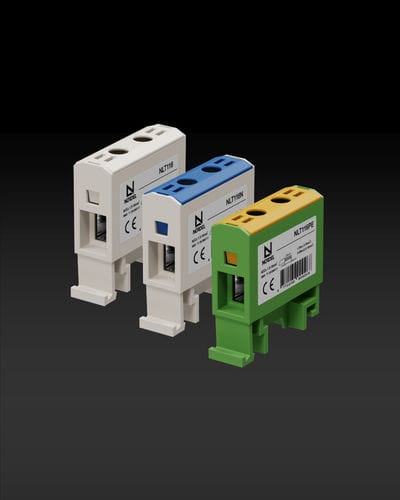

2-wire connection terminal NLT116 series

for electrical cabinetfor connection terminal

tightening torque labels on the connector cover places for component markers higher 1000 V AC and 1500 V DC voltage rating safe UL 94 V-0 class plastic material protruding serrations inside of the barrel class A short circuit tested easy to install with metal fixation fasteners antioxidation grease on bolts Conductor cross-section (Cu, Al mm²): 1,5 – 16 mm² Nominal voltage AC / DC (V): 1000 / 1500 IEC voltage AC / DC (V): 1000 Nominal current (A): 82 (Cu) / 75 (Al) IEC current (A): 85 (Cu) / 65 (Al) W / H / L (mm): 13,5 / 39,5 / 43 Screw, hexagon key: No. 4 Tightening torque (Nm): 1,5 Nm (1,5 mm²) / 3 Nm (2,5–16 mm²) Mounting: DIN rail Weight (g): 17 Package (pcs): 20
