2-wire connection terminal NLT195 series
for electrical cabinetfor connection terminal

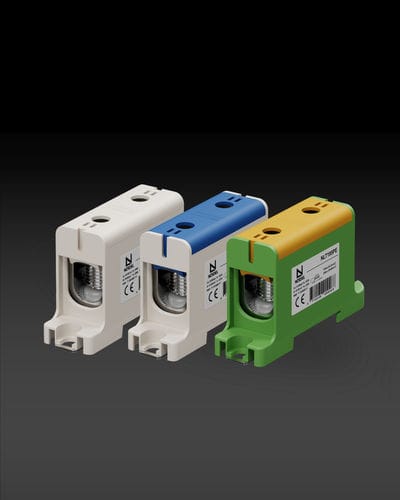

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal - image - 2

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal - image - 3

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal - image - 4

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal - image - 5

2-wire connection terminal - NLT195 series - NORDEL - for electrical cabinet / for connection terminal - image - 6

Add to favorites

Compare this product

Go to the NORDEL website for more information

Characteristics

Other characteristics: 2-wire
Applications: for connection terminal, for electrical cabinet

Description

tightening torque labels on the connector cover places for component markers higher 1000 V AC and 1500 V DC voltage rating safe UL 94 V-0 class plastic material protruding serrations inside of the barrel class A short circuit tested easy to install with metal fixation fasteners antioxidation grease on bolts Conductor cross-section (Cu, Al) - 6–95 mm² Nominal voltage AC / DC (V) - 1000 / 1500 V IEC voltage AC / DC (V) - 1000 V Nominal current (A) - 245 A (Cu) / 220 A (Al) UL current (A) - 230 A (Cu) / 180 A (Al) W / H / L (mm) - 24 / 49 / 85 Screw, hexagon key - No. 5 Tightening torque (Nm) - 10 Nm (16–25 mm²) / 20 Nm (35–95 mm²) Mounting - DIN rail, screw Weight (g) - 65 g Package (pcs) - 8
