2-wire connection terminal NLT135 series
for electrical cabinetfor connection terminal

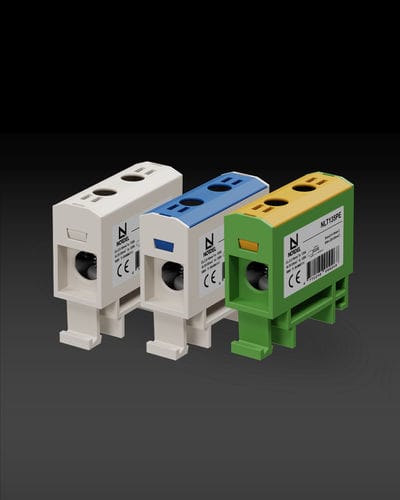

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal - image - 2

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal - image - 3

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal - image - 4

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal - image - 5

2-wire connection terminal - NLT135 series - NORDEL - for electrical cabinet / for connection terminal - image - 6

Add to favorites

Compare this product

Go to the NORDEL website for more information

Characteristics

Other characteristics: 2-wire
Applications: for electrical cabinet, for connection terminal

Description

tightening torque labels on the connector cover places for component markers higher 1000 V AC and 1500 V DC voltage rating safe UL 94 V-0 class plastic material protruding serrations inside of the barrel class A short circuit tested easy to install with metal fixation fasteners antioxidation grease on bolts Conductor cross-section (Cu, Al mm²): 2,5 – 35 mm² Nominal voltage AC / DC (V): 1000 / 1500 IEC voltage AC / DC (V): 1000 Nominal current (A): 135 (Cu) / 120 (Al) IEC current (A): 115 (Cu) / 90 (Al) W / H / L (mm): 16 / 40 / 45 Screw, hexagonal key: No. 4 Tightening torque (Nm): 3 Nm (2,5–16 mm²) | 6 Nm (25–35 mm²) Mounting: DIN rail Weight (g): 27 Package (pcs): 10
