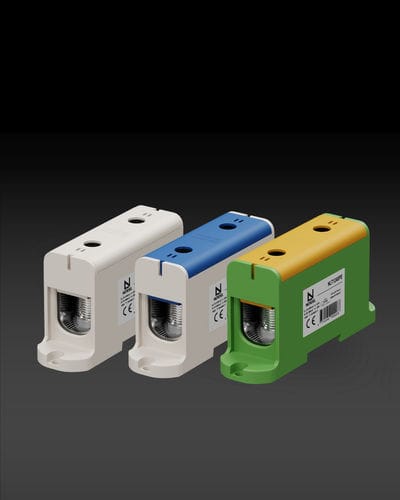

2-wire connection terminal NLT1240 series

tightening torque labels on the connector cover places for component markers higher 1000 V AC and 1500 V DC voltage rating safe UL 94 V-0 class plastic material protruding serrations inside of the barrel class A short circuit tested easy to install with metal fixation fasteners antioxidation grease on bolts Conductor cross-section (Cu, Al) - 35–240 mm² Nominal voltage AC / DC (V) - 1000 / 1500 V IEC voltage AC / DC (V) - 1000 V Nominal current (A) - 425 A (Cu) / 380 A (Al) UL current (A) - 380 A (Cu) / 310 A (Al) W / H / L (mm) - 38 / 67 / 130 Screw, hexagon key - No. 8 Tightening torque (Nm) - 12 Nm (35–70 mm²) / 45 Nm (95–240 mm²) Mounting - DIN rail, screw Weight (g) - 195 g Package (pcs) - 2
