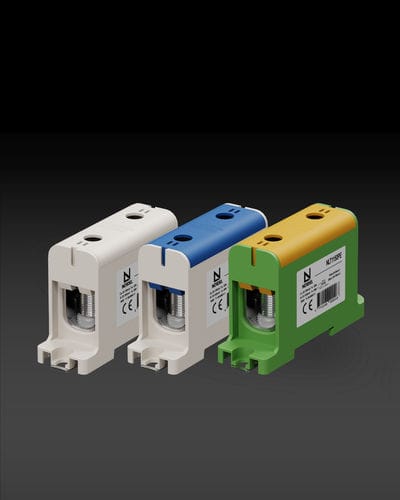

2-wire connection terminal NLT1150 series

for electrical cabinetfor connection terminal

tightening torque labels on the connector cover places for component markers higher 1000 V AC and 1500 V DC voltage rating safe UL 94 V-0 class plastic material protruding serrations inside of the barrel class A short circuit tested easy to install with metal fixation fasteners antioxidation grease on bolts Conductor cross-section (Cu, Al) - 35–150 mm² Nominal voltage AC / DC (V) - 1000 / 1500 V IEC voltage AC / DC (V) - 1000 V Nominal current (A) - 320 A (Cu) / 290 A (Al) UL current (A) - 285 A (Cu) / 250 A (Al) W / H / L (mm) - 30 / 60 / 95 Screw, hexagon key - No. 8 Tightening torque (Nm) - 14 Nm (35–95 mm²) / 30 Nm (120–150 mm²) Mounting - DIN rail, screw Weight (g) - 100 g Package (pcs) - 5
