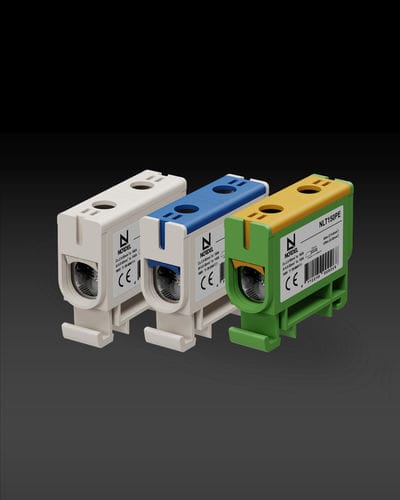

2-wire connection terminal NLT150 series

for electrical cabinetfor connection terminal

tightening torque labels on the connector cover places for component markers higher 1000 V AC and 1500 V DC voltage rating safe UL 94 V-0 class plastic material protruding serrations inside of the barrel class A short circuit tested easy to install with metal fixation fasteners antioxidation grease on bolts - Conductor cross-section (Cu, Al) - 2,5–50 mm² Nominal voltage AC / DC (V) - 1000 / 1500 V IEC voltage AC / DC (V) - 1000 V Nominal current (A) - 160 A (Cu) / 145 A (Al) UL current (A) - 150 A (Cu) / 120 A (Al) W / H / L (mm) - 18 / 43 / 50 Screw, hexagon key - No. 5 Tightening torque (Nm) - 4 Nm (2,5–4 mm²) / 12 Nm (6–50 mm²) Mounting - DIN rail Weight (g) - 30 g Package (pcs) - 10
