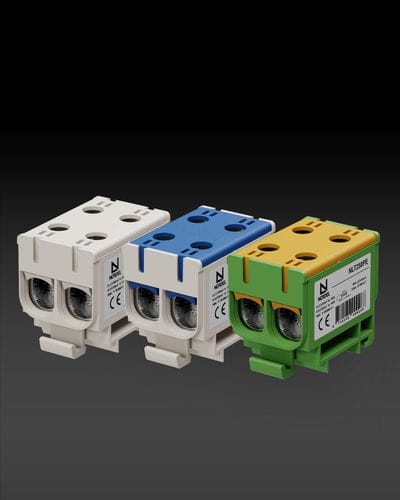

4-wire connection terminal NLT250 series

for electrical cabinetfor connection terminal

• Tightening torque values clearly marked on the connector cover • Dedicated areas for component marking • High voltage rating: up to 1000 V AC and 1500 V DC • Housing made of UL 94 V-0 flame-retardant material • Serrated contact surface inside the barrel ensures reliable electrical connection • Class A short-circuit tested • Quick and easy installation with metal fixation fasteners • Bolts pre-treated with anti-oxidation grease for long-term performance Technical Data Parameter - Value Conductor cross-section (Cu / Al) - 2,5 – 50 mm² Nominal voltage (AC / DC) - 1000 / 1500 V IEC voltage (AC / DC) - 1000 V Nominal current - 320 A (Cu) / 290 A (Al) IEC current - 150 A (Cu) / 120 A (Al) Dimensions (W / H / L) - 30 / 43 / 50 mm Screw / hex key - No. 5 Tightening torque - 4 Nm (2,5–4 mm²) / 12 Nm (6–50 mm²) Mounting - DIN rail Weight - 90 g Package - 6 pcs
