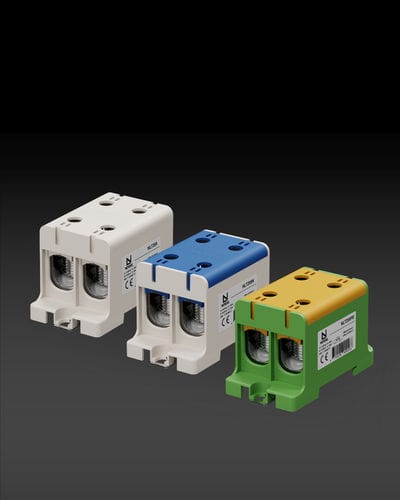

4-wire connection terminal NLT295 series

for electrical cabinetfor connection terminal

• Tightening torque values clearly marked on the connector cover • Dedicated areas for component marking • High voltage rating: up to 1000 V AC and 1500 V DC • Housing made of UL 94 V-0 flame-retardant material • Serrated contact surface inside the barrel ensures strong and reliable electrical connection • Class A short-circuit tested • Suitable for DIN rail or screw mounting • Bolts pre-treated with anti-oxidation grease for enhanced durability and conductivity Technical Data Parameter - Value Conductor cross-section (Cu / Al) - 16 – 95 mm² Nominal voltage (AC / DC) - 1000 / 1500 V IEC voltage (AC / DC) - 1000 V Nominal current - 245 A (Cu) / 220 A (Al) IEC current - 230 A (Cu) / 180 A (Al) Dimensions (W / H / L) - 42 / 49 / 85 mm Screw / hex key - No. 5 Tightening torque - 10 Nm (16–25 mm²) / 20 Nm (35–95 mm²) Mounting - DIN rail / screw Weight - 125 g Package - 3 pcs
