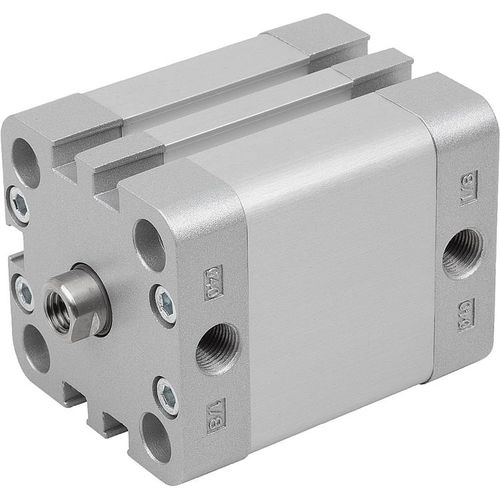

Pneumatic cylinder 12001
magnetic pistondouble-actingaluminum

pneumatic cylinder
pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Technology
magnetic piston
Configuration
double-acting
Material
aluminum, stainless steel
Norms
ISO 21287
Other characteristics
compact

Description

DIN ISO 21287 pneumatic compact cylinder double-acting with magnetic piston Description Material: Cylinder tube: aluminium. End cover: die-cast aluminium. Piston rod: stainless steel 1.4301 (from cylinder Ø 32 mm 1.4021). Piston and piston rod seal: polyurethane. Version: Cylinder tube: anodised. Endcap: bright. Piston rod: bright. Note: Double-acting pneumatic cylinder acc. to DIN ISO 21287. Piston rod with internal or external thread, position detection for proximity switch and flexible damping on both sides. Thanks to their compact structural dimensions, compact cylinders are ideal for use in installation spaces where space is limited. Technical data: Operating principle: double-acting. Operating medium: filtered and dried air, oiled or not oiled. Operating pressure: 1 to 10 bar. Damping: flexible damping on both sides, adjustable. Mounting position: arbitrary. Position detection for proximity switch. Pneumatic connection: DIN EN ISO 228/1. Temperature range: -20 °C to +80 °C.
