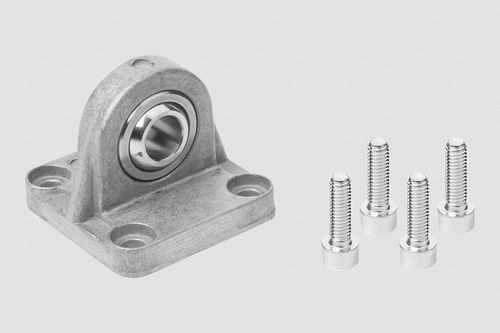

Joining flange 12021-17 seriestubefor bearing unitsaluminium
Add to favorites
Compare this product
Characteristics
- Applications
- tube, joining, for bearing units
- Material
- steel, aluminium
- Other characteristics
- rotary
- Nominal diameter
Max.: 80 mm
(3.15 in)Min.: 32 mm
(1.26 in)
Description
Swivel flanges, spherical for ISO 15552 / 21287
Material
Hinge brackets aluminium.
Spherical bearing steel (formerly DIN 648K).
Screws steel.
Version
Hinge bracket bright.
Screws electro zinc-plated.
Note
Swivel flange for DIN ISO 15552 and DIN ISO 21287 standard and compact cylinders. This swivel flange is used for pivot mounting of pneumatic cylinders.
Mounted on the bottom (end cover).
Scope of delivery
1 swivel flange.
4 cap screws.
Material
Hinge brackets aluminium.
Spherical bearing steel (formerly DIN 648K).
Screws steel.
Version
Hinge bracket bright.
Screws electro zinc-plated.
Note
Swivel flange for DIN ISO 15552 and DIN ISO 21287 standard and compact cylinders. This swivel flange is used for pivot mounting of pneumatic cylinders.
Mounted on the bottom (end cover).
Scope of delivery
1 swivel flange.
4 cap screws.
