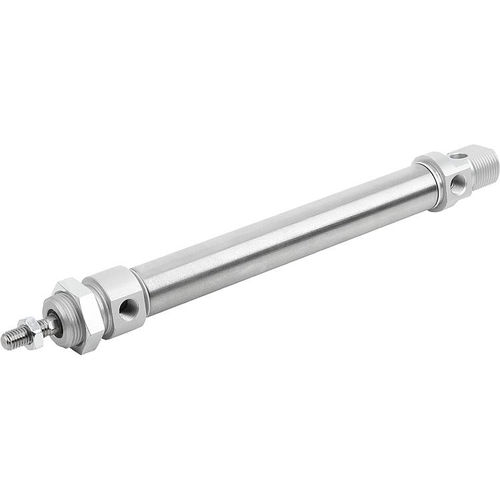

Pneumatic cylinder 12002

magnetic pistondouble-actingaluminum

DIN ISO 6432 pneumatic round cylinder double-acting with magnetic piston Description Material: Cylinder tube: stainless steel 1.4301. Endcap: aluminium. Piston rod: stainless steel 1.4305. Piston and piston rod seal: polyurethane, NBR. Cylinder piston: brass. Piston rod guide bush: sintered bronze. Version: Cylinder tube: bright. Endcap: anodised. Piston rod: bright. Note: Double-acting pneumatic cylinder acc. to DIN ISO 6432. Piston rod with external thread, position detection for proximity switch and flexible damping on both sides. Technical data: Operating principle: double-acting. Operating medium: filtered and dried air, oiled or not oiled. Operating pressure: 1 to 10 bar. Damping: flexible damping on both sides, adjustable. Mounting position: arbitrary. Position detection for proximity switch. Pneumatic connection: DIN EN ISO 228/1. Temperature range: -20 °C to +80 °C.
