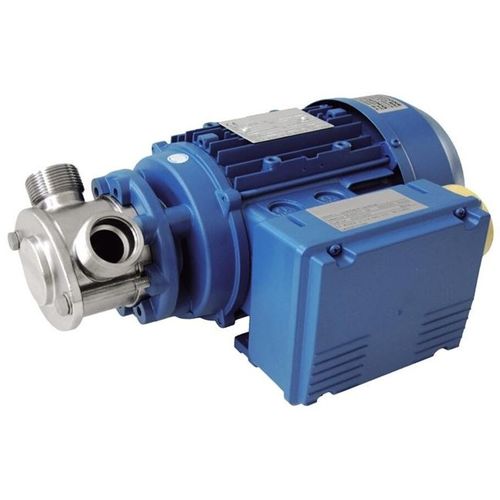

Water pump MINIVERTER series

with electric motorself-primingimpeller

This flexible vane pump can self-prime from dry and perform a suction lift up to 6m without the requirement of a non-return valve. It is fully reversible and one of the most versatile pumps on the market. A carrying handle can also be fitted to the pump if required, this turns it into a mobile pump and an extremely useful tool to have on site. The delicate action of the rubber impeller is what creates the non-pulsating flow and allows delicate fluids to be handled. As the shaft within the pump rotates, the flexible impeller bends against the casing forcing the fluid and solids out of the discharge port. Materials of this flexible impeller pump can be customised to suit application requirements, The standard casing material is stainless steel 316. The impeller can be supplied in various materials including NBR, Neoprene, EPDM, Silicon and Natural rubber depending on the nature of the fluid. Our Miniverter flexible vane pumps are FDA approved for use in hygienic and sanitary applications and can be supplied with various connection types, including; DIN, BSP Male and Female, Triclover, SMS, RJT, Friederich, Garolla and Macron. Other variations of our flexible impeller pump are available to suit a wide range of applications, these include; bare shaft pump, electric motor, hydraulic motor, gear motor with pulley and mechanical speed variator. These variations can also be supplied on a mobile trolley and with a wide range of accessories including; control panel, bypass, barrel filling kit, carry handle, flow meter, dry run protection, pressure switch, level sensors, remote control and motor shroud.
