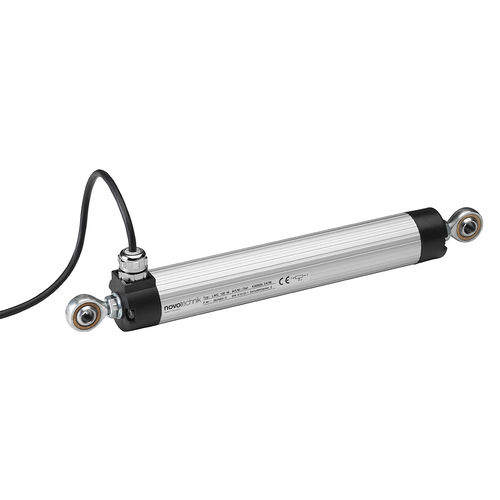

Linear position sensor LWG
conductive plastic potentiometeranalogmetal

linear position sensor
linear position sensor
Add to favorites
Compare this product


Characteristics

Type
linear
Technology
conductive plastic potentiometer
Output signal
analog
Measurement object
metal
Protection class
IP65
Other characteristics
rugged
Measuring range

750 mm
(29.53 in)

Description

Potentiometric position transducer with double supported actuating rod; long life span and high adjustement speed; decoupled wiper tap; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class • Rod and cylinder design with twin slide bearings and lip seal • Backlash free mounting via spherical rod end bearings with large pivot angle of ±12.5 degrees • Outstanding linearity • Resolution better than 0.01 mm • Long life up to 50 Mio. movements • Protection class IP65 • Cable or connector version available • Heavy duty version IP67 see data sheet series LWX • Manufacturing Engineering • Automation technology • Vehicle Engineering • Robotics technology This linear transducer series is characterized by its robust housing and easy mounting via rod end bearings. The wiper block ismechanically decoupled backlash-free from the actuating rod, hereby ensuring high accuracy and long life.The sensor can be used in a wide range of closed-loop control applications, including linear position sensing in industrialautomation, mobile electronics and also in very fast robotics, e.g. simulator actuation. The simplicity of the measurement system– being electrically passive and providing absolute output even after power loss – makes the sensor impervious to electronicinterferences and magnetic interferences.
