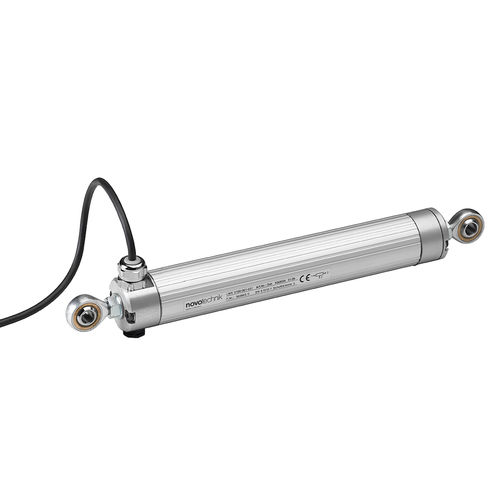

Linear position sensor LWX series
conductive plastic potentiometermetalIP67

linear position sensor
linear position sensor
linear position sensor
Add to favorites
Compare this product


Characteristics

Type
linear
Technology
conductive plastic potentiometer
Measurement object
metal
Protection class
IP67
Other characteristics
rugged
Measuring range

750 mm
(29.53 in)

Description

Potentiometric position transducer; robust design with metal flanges and pressure equalization system with GORE-membran; long life span and high adjustement speed; easy to assemble via low-backlash pivot heads with a large angle of freedom; High protection class Designed for extreme operatingenvironments, the LWX seriesfeatures an all-metalconstruction and a pressurecompensation technology toprevent buildup that coulddegrade operation in mechanical, vehicle, automation androbotic applications where anextended operating life isessential.These rugged position transducers provide direct, absolutemeasurement of displacementor length.A free-pivot-head mounted onthe actuating rod eliminatesbacklash guaranteeing highaccuracy • protection class IP67 • all-metal housing • corrosion resistant • differential pressure compensation system with GOREmembrane - compensates forpump effect of push rodmovement • high vibration resistance • suitable for harsh environmental conditions (humidity,oil, dust) • double beared actuating rod • mountable via low-backlashpivot heads with a large angleof free movement (up ±12.5 °) • outstanding linearity up to±0.04 % • resolution better than 0.01 mm • long life up to 50 millionmovements, depending onapplication • cable or connector versionavailable • version IP65 see data sheetLWG • shaft protected version seedata sheet LWX, model 004
