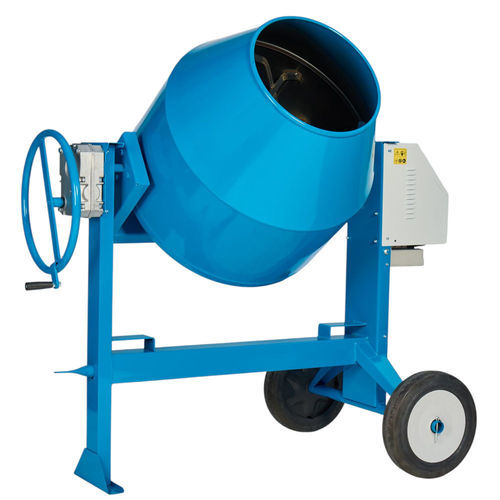

Electric concrete mixer TECH series

diesel enginegasoline enginemobile

Product description
Mixer designed to address common issues of traditional cement mixers. The transmission is integrated into the arm and the tilting mechanism uses a gear reducer, resulting in reduced noise, compact footprint and simplified operation.

Main features

• Mixing system: Polieri mixing system with wide-bottom drum and counter-bottom, optimized blade geometry and low drum rotation speed; progressive sieving tests show homogeneous, well-blended material.
• Reducer: Gear reducer protects against accidental tipping and reduces risks associated with conventional machines.
• ABS guard: Moving parts fully guarded.
• High-strength belt: Poly-V transmission belt housed inside the motor compartment.
• Quick belt tensioning: Motor drive belt can be easily and safely tensioned.
• Easy-to-reach controls: Electric switch and power plug located beneath the motor housing for direct access.
• Drum tilting: 360° drum tilting from one side to the other without locking for flexible discharge positions.
• Finish: Epoxy-polyester powder coating for increased gloss and resistance to atmospheric agents.
• Stackability: Machines can be stacked to simplify transport and storage.

Optionals

• Available with petrol or diesel engines.
• Pneumatic wheels available.

Technical specifications
Model; 250; 300; 350; 500
Electric motor power (hp); 1.5; 2; 2; 2.5
Petrol engine power (hp); 5; 6; 6; 6
Diesel engine power (hp); 6; 6; 6; 6
Drum volume (L); 250; 300; 350; 500
Output capacity (L); 200; 250; 300; 400
Drum rotation speed (rpm); 24; 24; 24; 24
Length (mm); 1460; 1590; 1590; 1790
Width (mm); 900; 900; 900; 1000
Height (mm); 1460; 1515; 1515; 1515
Weight (kg); 155; 170; 180; 200

Series specifications

• Series name: TECH
• Drum volumes (L): 250 / 300 / 350 / 500
• Output capacities (L): 200 / 250 / 300 / 400
• Electric motor power (hp): from 1.5 to 2.5 depending on model
• Petrol engine power (hp): 5–6 depending on model
• Diesel engine power (hp): 6 (all models)
• Drum rotation speed: 24 rpm
• Tilting: 360° drum tilting without locking
• Transmission: integrated arm transmission with gear reducer; high-resistance poly-V belt inside motor compartment
• Protection: ABS guard for moving parts
• Finish: epoxy-polyester powder coating
• Stackable for storage
