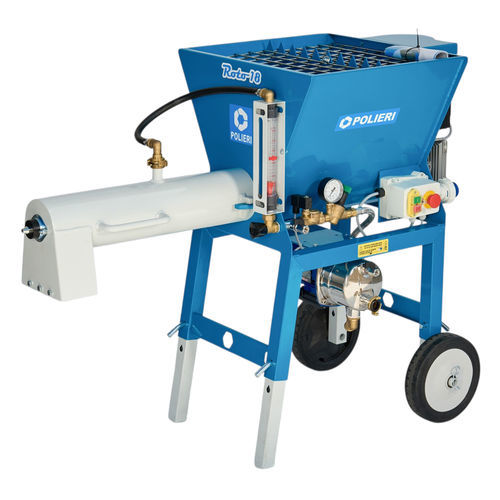

Electric concrete mixer ROTO 18

stationarycontinuous

Product overview
Continuous-cycle mixer for rapid mixing of pre-blended plasters, masonry mortars, self-leveling materials and screeds. Can be paired with a plastering/pumping machine to form a complete mixing and pumping system.

Suitable for mixing

• Pre-blended cement screed (including fibre-reinforced)
• Pre-dosed lightweight screed with expanded clay (grain size < 16 mm)
• Pre-blended lightweight screed with polystyrene
• Cement-based plasters
• Lime-based plasters
• Structural plasters with microfibres
• Restorative plasters
• Grouts and mortars for injection
• Insulating plasters based on polystyrene or cork
• Reinforcing mortars
• Bedding mortars
• Filling micro-concretes (grain size < 8 mm)
• Self-leveling subfloors, cement-based
• Self-leveling subfloors, anhydrite-based
• Thermal insulating subfloors with cork or polystyrene
• Adhesives for coatings and tiles
• Fire protection mortars

Features

• Removable mixing shaft for straightforward cleaning and screw replacement
• High-torque motor to ensure reliable start-up under load
• Adjustable water flow valve to fine-tune mix consistency
• Stainless steel water pump (standard) supplied with 10 m hose

Adjustable legs
Legs adjustable to facilitate discharge into wheelbarrows or plastering machines.

Paint finish
Epoxy-polyester thermosetting powder coating for surface protection and environmental compliance.

Optionals

• Flowmeter for precise water regulation
• Adhesive screw auger for mixing adhesives used in thermal insulation systems and tile adhesives

Technical specifications

• Model: ROTO 18
• Voltage (V): 230
• Motor power (kW): 2
• Pump power (kW): 0.55
• Mixer speed (rpm): 280
• Water pressure (bar): 2
• Approximate output (L/min): 18
• Drum capacity (L): 70
• Length (mm): 1370
• Width (mm): 630
• Height (mm): 950 – 1090 – 1160
• Weight (kg): 94
