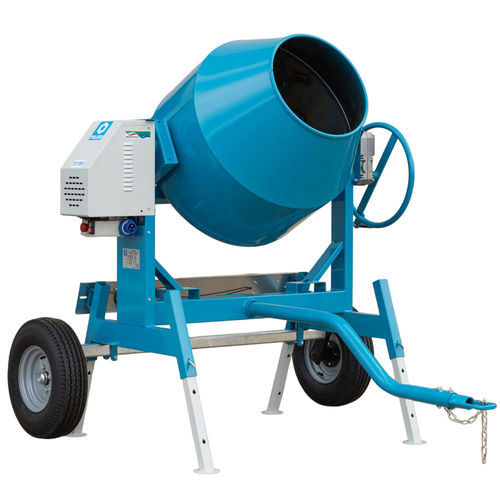

Electric concrete mixer BRF series

gasoline enginediesel enginetrailer

Short description
Silenced towable cement mixer designed for on-site transport and continuous mixing operations. Towable at speeds up to 90 km/h where permitted by regulations. The enclosed transmission in the arm and the tilting system with gear reducer reduce noise and improve operational safety.

Mixing system

• Wide-bottom drum with counter-bottom to improve material flow
• Special blade geometry for efficient mixing at low drum rotation speed (24 rpm)
• Progressive sieving tests indicate homogeneous and well-blended output

Gear reducer
Gear reducer integrated in the tilting system to prevent accidental tipping and ensure safe drum operation.

Safety and protection

• ABS guard protecting moving parts
• Reinforced chassis for transport stability and durability
• Towable frame compliant with road transport regulations

Transmission and maintenance

• High-resistance poly-V belt housed inside motor compartment
• Quick and safe belt tensioning system
• Electric switch and power plug located beneath motor housing for easy access

Drum tilting
Drum can be tilted 360° from one side to the other without locking to facilitate pouring and site operations.

Finish and stacking
Epoxy-polyester thermosetting powder coating for improved gloss, durability and resistance to atmospheric agents. Machines are stackable to simplify transport and storage.

Options

• Available with petrol or diesel engines; also electric motor configurations

Technical specifications

• Model BRF250
  • Electric motor: 1.5 hp
  • Petrol engine: 5 hp
  • Diesel engine: 6 hp
  • Drum volume: 250 L
  • Output capacity: 200 L
  • Drum speed: 24 rpm
  • Length: 1870 mm
  • Width: 900 mm
  • Height: 1370 mm
  • Weight: 180 kg
• Model BRF300
  • Electric motor: 2 hp
  • Petrol engine: 6 hp
  • Diesel engine: 6 hp
  • Drum volume: 300 L
  • Output capacity: 250 L
  • Drum speed: 24 rpm
  • Length: 1950 mm
  • Width: 960 mm
  • Height: 1380 mm
  • Weight: 210 kg
• Model BRF350
  • Electric motor: 2 hp
  • Petrol engine: 6 hp
  • Diesel engine: 6 hp
  • Drum volume: 350 L
  • Output capacity: 300 L
  • Drum speed: 24 rpm
  • Length: 1950 mm
  • Width: 960 mm
  • Height: 1380 mm
  • Weight: 215 kg
