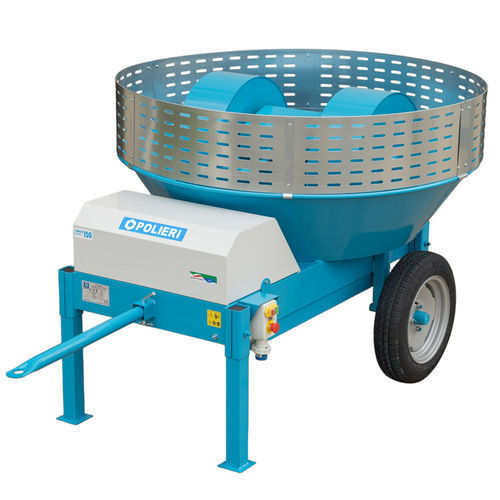

Rotary drum mixer 120

verticalbatchsolid/liquid

Short description
Ideal for producing fine mortar, thin plaster, tufina, crushing pozzolana and other aggregates, and recovering waste material. Equipped with grease-bath transmission for high reliability and quiet operation.

Frame
The frame is made of heavy-duty steel, while the drum is constructed from thick sheet steel with a contoured rim.

Watertight discharge spout
The watertight discharge spout is operated via a lever system for easy and reliable discharge.

Electric motor
Available in single-phase or three-phase versions. Motors are fitted with a waterproof magnetothermal switch with release coil to prevent accidental restart after power loss, and a CE-compliant plug.

Grinding wheels
Grinding wheels feature a large crushing surface and are ballasted with concrete and iron filings. Each wheel is connected to the vertical shaft via two oscillating arms to ensure uniform crushing.

Technical specifications (table)
Model | 120 | 150 | 160 | 180 | 200 | 220
Basin diameter (mm) | 1200 | 1500 | 1600 | 1800 | 2000 | 2200
Wheel diameter (mm) | 500 | 600 | 650 | 750 | 800 | 900
Weight of each wheel (kg) | 85 | 200 | 200 | 300 | 350 | 500
Three-phase motor power (hp) | 1 | 2 | 2 | 4 | 5.5 | 7.5
Single-phase motor power (hp) | 1.5 | 2 | 2.5 | N/A | N/A | N/A
Basin capacity (L) | 230 | 410 | 500 | 720 | 850 | 1350
Effective output (m³) | 0.24 | 0.41 | 0.5 | 0.72 | 0.85 | 1.35
Total weight (kg) | 320 | 730 | 900 | 1100 | 1450 | 1800
Length (mm) | 1500 | 1900 | 2050 | 2300 | 2450 | 2500
Width (mm) | 1200 | 1500 | 1600 | 1800 | 2000 | 2200
Height (mm) | 1050 | 1250 | 1300 | 1350 | 1500 | 1700

Specifications

• Model 120: Basin diameter 1200 mm; Wheel diameter 500 mm; Weight of each wheel 85 kg; Three-phase motor 1 hp; Single-phase motor 1.5 hp; Basin capacity 230 L; Effective output 0.24 m³; Total weight 320 kg; Length 1500 mm; Width 1200 mm; Height 1050 mm
• Model 150: Basin diameter 1500 mm; Wheel diameter 600 mm; Weight of each wheel 200 kg; Three-phase motor 2 hp; Single-phase motor 2 hp; Basin capacity 410 L; Effective output 0.41 m³; Total weight 730 kg; Length 1900 mm; Width 1500 mm; Height 1250 mm
• Model 160: Basin diameter 1600 mm; Wheel diameter 650 mm; Weight of each wheel 200 kg; Three-phase motor 2 hp; Single-phase motor 2.5 hp; Basin capacity 500 L; Effective output 0.5 m³; Total weight 900 kg; Length 2050 mm; Width 1600 mm; Height 1300 mm
• Model 180: Basin diameter 1800 mm; Wheel diameter 750 mm; Weight of each wheel 300 kg; Three-phase motor 4 hp; Single-phase motor N/A; Basin capacity 720 L; Effective output 0.72 m³; Total weight 1100 kg; Length 2300 mm; Width 1800 mm; Height 1350 mm
• Model 200: Basin diameter 2000 mm; Wheel diameter 800 mm; Weight of each wheel 350 kg; Three-phase motor 5.5 hp; Single-phase motor N/A; Basin capacity 850 L; Effective output 0.85 m³; Total weight 1450 kg; Length 2450 mm; Width 2000 mm; Height 1500 mm
• Model 220: Basin diameter 2200 mm; Wheel diameter 900 mm; Weight of each wheel 500 kg; Three-phase motor 7.5 hp; Single-phase motor N/A; Basin capacity 1350 L; Effective output 1.35 m³; Total weight 1800 kg; Length 2500 mm; Width 2200 mm; Height 1700 mm
