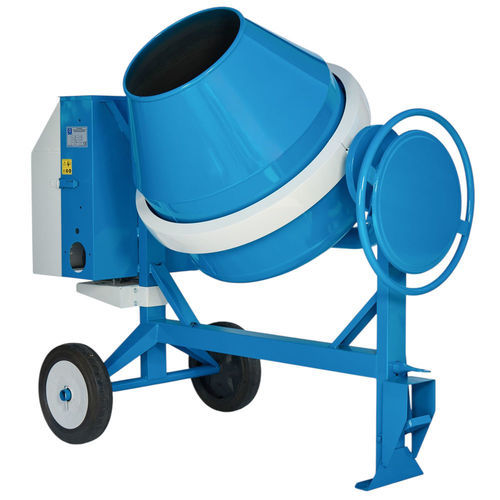

Electric concrete mixer MIX series

gasoline enginediesel enginemobile

Overview
The MIX series is a classic professional cement mixer featuring a traditional gear transmission with pinion and cast‑iron crown. Suitable for construction and renovation sites that require a simple, durable machine. Continuous operation endurance is provided by a three‑part welded mixing drum. Tilting is effortless and controllable via the cast‑iron gear system and large handwheel to ensure controlled discharge. Reinforced welded blades and their specific geometry, combined with low drum speed, deliver a homogeneous, high‑quality mix.

Paint finish
All machines are powder‑coated with epoxy‑polyester thermosetting paint for superior gloss, durability and weather resistance.

Optionals

• Available with electric, petrol or diesel engines from established manufacturers.
• Engines are installed in a ventilated compartment with multiple openings to ensure adequate cooling and reliable performance.

Technical specifications
Model: 300 / 350
Electric motor power (hp): 2 / 2
Petrol engine power (hp): 6 / 6
Diesel engine power (hp): 6 / 6
Drum volume (L): 300 / 350
Output capacity (L): 250 / 300
Drum rotation speed (rpm): 24 / 24
Length (mm): 1970
Width (mm): 970
Height (mm): 1490
Weight (kg): 200 / 215

Model details

• Model 300: Electric 2 hp; Petrol 6 hp; Diesel 6 hp; Drum 300 L; Output 250 L; Speed 24 rpm; Dimensions L1970 × W970 × H1490 mm; Weight 200 kg.
• Model 350: Electric 2 hp; Petrol 6 hp; Diesel 6 hp; Drum 350 L; Output 300 L; Speed 24 rpm; Dimensions L1970 × W970 × H1490 mm; Weight 215 kg.
