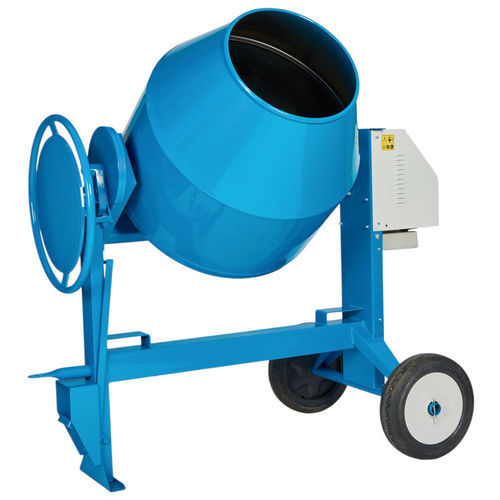

Diesel engine concrete mixer TECH-PC series

gasoline engineelectricmobile

Product overview
TECH-PC series silenced cement mixer engineered to solve common issues of traditional mixers. Integrated transmission in the arm and a gear-and-crown tilting system operated by pedal provide quiet operation, reduced weight, structural rigidity and reliable performance for construction and rental fleets.

Main features

• Mixing system: Polieri wide-bottom drum with counter-bottom, optimized blade geometry and low drum rotation speed; progressive sieving tests confirm homogeneous, well-blended material.
• Reducer: Gear reducer offers anti-tipping protection for enhanced operator safety.
• ABS guard: All moving parts are fully protected.
• High-strength belt: Internal high-resistance poly-V transmission belt housed within the motor compartment.
• Quick belt tensioning: Motor drive belt can be tensioned easily and safely.
• Accessible controls: Electric switch and power plug positioned beneath the motor housing for easy access and maintenance.
• 360° drum tilting: Gear-and-crown tilting system with pedal enables full 360° rotation without locking to simplify pouring and operator tasks.
• Finish: Epoxy-polyester thermosetting powder coating for improved gloss, durability and resistance to atmospheric agents; environmentally friendly.
• Stackable: Units can be stacked for simplified transport and storage.
• Options: Available with petrol or diesel engines and pneumatic wheels.

Technical specifications
Model | 140 | 190 | 250 | 300 | 350
Electric motor power (hp) | 0.75 | 0.75 | 1.5 | 2 | 2
Petrol engine power (hp) | 3 | 3 | 5 | 6 | 6
Diesel engine power (hp) | – | – | 6 | 6 | 6
Drum volume (L) | 140 | 190 | 250 | 300 | 350
Output capacity (L) | 100 | 140 | 200 | 250 | 300
Drum rotation speed (rpm) | 23 | 23 | 24 | 24 | 24
Length (mm) | 1300 | 1300 | 1460 | 1590 | 1590
Width (mm) | 710 | 710 | 900 | 900 | 900
Height (mm) | 1300 | 1300 | 1460 | 1515 | 1515
Weight (kg) | 100 | 108 | 155 | 170 | 180

Product specifications

• Model series: TECH-PC (models: 140, 190, 250, 300, 350)
• Drum volume: 140 / 190 / 250 / 300 / 350 L
• Output capacity: 100 / 140 / 200 / 250 / 300 L
• Drum rotation speed: 23 rpm (140, 190) – 24 rpm (250, 300, 350)
• Electric motor power (hp): 0.75 / 0.75 / 1.5 / 2 / 2 (by model)
• Petrol engine power (hp): 3 / 3 / 5 / 6 / 6 (by model)
• Diesel engine power (hp): not available for 140/190; 6 hp for 250/300/350
• Dimensions (L × W × H mm): 1300×710×1300 (140,190); 1460×900×1460 (250); 1590×900×1515 (300,350)
• Weight (kg): 100 / 108 / 155 / 170 / 180 (by model)
• Safety/protection: Gear reducer for anti-tipping protection; ABS guards for moving parts
• Transmission: Internal high-resistance poly-V belt with quick tensioning and easy-access controls
• Drum tilting: 360° tilt capability via gear-and-crown tilting system with pedal
• Finish: Epoxy-polyester thermosetting powder coating
• Options: Petrol or diesel engines, pneumatic wheels
