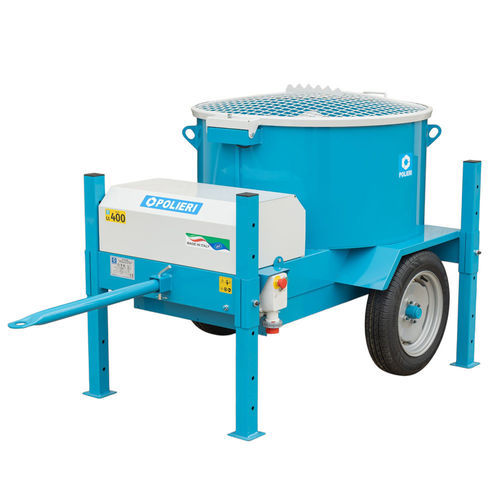

Planetary mixer TECNOMIX 400

mobilebatchfor solids

Short description
High-capacity planetary mixer with a compact footprint and reduced weight. Designed for efficient mixing of pre-mixed or pre-dosed bagged materials and suitable for traditional mixes when required. Ensures exceptional homogeneity to prevent cement lumps and fiber clumping in fiber-reinforced products.

Suitable for mixing

• Pre-mixed or traditional cement screeds, including fiber- or additive-reinforced mixes
• Lightweight screeds (pre-dosed or traditional) with expanded clay (aggregate > 20 mm)
• Colored rubber granules for impact-absorbing flooring
• Self-leveling screeds (anhydrite or cement-based)
• Thermal insulation screeds with cork or polystyrene base
• Cement-, lime- or gypsum-based plasters
• Fiber-reinforced structural plasters, with or without additives
• Renovation plasters
• Traditional plasters
• Injection mortars and binders
• Insulating plasters with polystyrene or cork base
• Fiber-reinforced structural mortars
• Bedding mortars (pre-mixed or traditional)
• Filling concrete (aggregate size ≤ 6 mm)
• Continuous draining concrete for flooring
• Heat-resistant mortars
• Fireproof materials

Discharge spout
Optimized discharge spout for fast, easy emptying of mixed material. Anti-intrusion grid prevents accidental contact with mixing blades.

Adjustable legs
Extendable legs allow setting the desired discharge height for easy unloading into wheelbarrows or plastering machines.

Gear motor with oil-bath gears
Robust gear motor with oil-bath gearing to reduce noise and provide consistent operating comfort.

Paint finish
Powder-coated with epoxy-polyester thermosetting paints for improved gloss, durability and resistance to atmospheric agents, respecting environmental standards.

Technical specifications (table)
Model | 130 | 400
Drum capacity (L) | 130 | 400
Effective output (L) | 100 | 280
Drum diameter (mm) | 700 | 1000
Blade rotation speed (rpm) | 32 | 32
Machine weight (kg) | 100 | 350
Wheel size / model (mm) | 250 | 135 / R13
Motor power (hp) | 2.5 | 5.5
Length (mm) | 810 | 1550
Width (mm) | 770 | 1300
Height (mm) | 1210 (1030) | 1550 (1230)

Features / technical specifications

• Model: TECNOMIX 400
• Drum capacity (L): 400
• Effective output (L): 280
• Drum diameter (mm): 1000
• Blade rotation speed (rpm): 32
• Machine weight (kg): 350
• Wheel size / model (mm): 135 / R13
• Motor power (hp): 5.5
• Length (mm): 1550
• Width (mm): 1300
• Height (mm): 1550 (1230)
