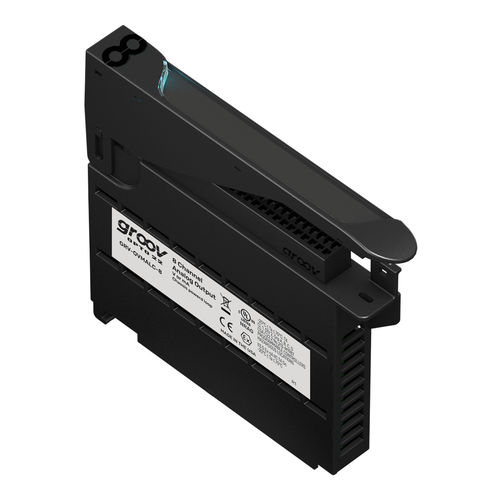

Analog output module GRV-OVMALC-8serial8 analog outputsEPIC
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Interface
- serial
- Number of inputs/outputs
- 8 analog outputs
- Bus standard
- EPIC
- Applications
- voltage, current
- Other characteristics
- configurable
Description
The GRV-OVMALC-8 analog output module has 8 channels, individually configurable for any one of seven voltage or current output ranges:
0 to 5 VDC
0 to 10 VDC
-5 to +5 VDC
-10 to +10 VDC
0 to 22 mA
4 to 20 mA
0 to 20 mA
Each range has 4096 counts (12 bits) of resolution. See the Specifications tab for more information.
For current outputs, the GRV-OVMALC-8 also provides an isolated loop supply.
Part of the groov EPIC® system, the GRV-OVMALC-8 mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and other analog, discrete, and serial groov I/O modules, to give you the mix of signals you need.
