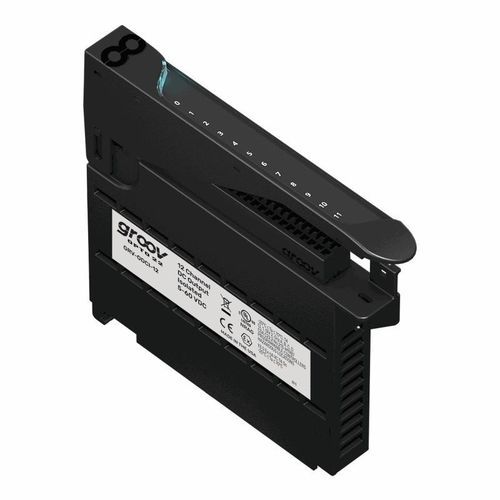

Digital output module GRV-ODCI-12

12-O12 Digital outputsEPIC

Overview
The GRV-ODCI-12 is a groov EPIC digital DC output module providing 12 isolated DC switching channels for controlling discrete loads within a groov EPIC system. It is engineered for industrial applications that require reliable, channel-isolated DC outputs with built-in diagnostics.

Key features

• 12 isolated digital DC outputs with channel-specific diagnostic LEDs for rapid troubleshooting
• Touch-sensitive cover pad and status LED for module information via the groov EPIC processor
• Advanced output functions: output pulsing (TPO) and on/off totalization
• Open-circuit indication and watchdog timeout support for safety and reliability

Applications

• OEM and machine design
• Process control and machine monitoring
• Power and energy monitoring and predictive maintenance
• Remote installations (water/wastewater, oil & gas), SCADA and IIoT systems

Compatibility and compliance

• Mounts on groov EPIC chassis alongside other groov I/O modules and the GRV-EPIC-PR1 processor
• UL/cUL listed; compliant with ATEX, Low Voltage and EMC CE directives and UKCA; factory tested
• Most modules carry a lifetime warranty

Technical specifications

• Model: GRV-ODCI-12
• Number of channels: 12
• Line voltage range (nominal): 5–48 VDC
• Line voltage range (maximum): 5–60 VDC
• Current rating: 400 mA per channel or 4.8 A per module (70 °C)
• Surge current: 5 A peak for 1 second
• Recommended max. fuse (fast) or circuit breaker: 3 A 60 VDC / channel, 6 A 60 VDC / module
• Minimum load: 20 mA
• Output voltage drop: 1.2 V max.
• Off-state leakage: 1 mA at 60 V
• Peak blocking voltage: 60 V
• TPO period (min, max, resolution): 0.005 s, 429496.72 s, 0.001 s
• Turn on/off time: 2.5 ms
• Isolation (field-to-logic): 300 V working, 1500 V transient (1 minute)
• Isolation (channel-to-channel): 300 V working, 1500 V transient (1 minute)
• Chassis power consumption: 1.2 W
• Minimum groov EPIC firmware version: 1.0.0
• Minimum PAC Project version: 10.0000
• Minimum library package for CODESYS version: 1.0.0.0
• Wire size: 28–14 AWG
• Wire strip length: 0.315–0.354 inches (8–9 mm)
• Torque, connector screw: 2.5 in-lb (0.28 N·m)
• Torque, hold-down screw: 3.5 in-lb (0.4 N·m)
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Relative humidity (non-condensing): 5–95%
• MTBF (minimum, 25 °C): 1.2 Mhrs
• Agency approvals: UL/cUL (Class 1, Div 2); CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA
• Warranty: Lifetime
