Digital output module GRV-OACIS-12

12-OEPICenergy monitoring and control

Overview

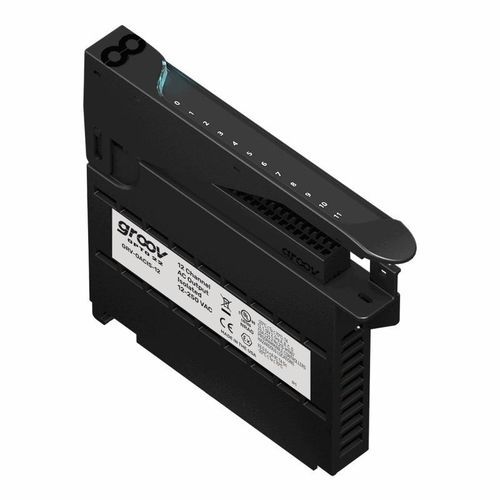

The GRV-OACIS-12 is a groov EPIC digital AC output module that provides 12 independent on/off channels for switching 12–250 VAC loads. It is intended for simple, lower-cost switching applications and integrates transient protection and zero-crossing switching to reduce switching transients and protect control electronics.

Key features

• 12 independent AC discrete output channels (on/off only)
• Zero-voltage turn-on and zero-current turn-off (zero-crossing) to minimize switching transients
• 300 V working field-to-logic isolation and 1500 V transient protection (1 minute)
• Module cover with LED status indicator and touch-sensitive pad for module info and wiring diagrams via the groov EPIC processor
• Mounts on groov EPIC chassis; compatible with GRV-EPIC-PR1 processor and other groov I/O modules
• UL/cUL listed; compliant with ATEX, Low Voltage, EMC CE and UKCA directives; RoHS and other approvals
• Factory tested twice before shipment; most modules carry a lifetime warranty

Applications

• OEM and machine design
• Process control and machine monitoring
• Power and energy monitoring
• Predictive maintenance and remote installations (water/wastewater, oil & gas)
• SCADA and IIoT applications

Technical specifications

• Model: GRV-OACIS-12
• Number of channels: 12
• Line voltage: 12–250 VAC
• Current rating (per channel): 0.5 A
• Recommended max. fuse or circuit breaker: 2 A 250 VAC per channel; 6 A 250 VAC common
• Minimum load current: 20 mA
• Output voltage drop: 1 V
• Off-state leakage at nominal voltage (60 Hz): 1.25 mA @ 240 VAC; 0.7 mA @ 120 VAC
• Peak blocking voltage: 500 V
• Operating frequency: 40 to 60 Hz; 400 Hz
• Turn-on / Turn-off time: ≤ 1/2 cycle (zero crossing)
• TPO period: N/A for GRV-OACIS-12
• Isolation (field-to-logic): 300 V working; 1500 V transient (1 minute)
• Isolation (channel-to-channel): 300 V working
• Chassis power consumption: 1.3 W
• Minimum groov EPIC firmware version: 1.0.0
• Minimum PAC Project version: 10.0000
• Minimum library package for CODESYS: 1.0.0.0
• Wire size: 28–14 AWG
• Wire strip length: 0.315–0.354 in (8–9 mm)
• Torque, connector screw: 2.5 in-lb (0.28 N·m)
• Torque, hold-down screw: 3.5 in-lb (0.4 N·m)
• Temperature (operating): -20 °C to +70 °C
• Temperature (storage): -40 °C to +85 °C
• Relative humidity (non-condensing): 5–95%
• MTBF (minimum, 25 °C): 1.2 Mhrs
• Agency approvals: UL/cUL (Class 1, Div 2); CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA
• Warranty: Lifetime
