Digital input module GRV-IDCS-24

24-I/OEPICfor machine condition monitoring

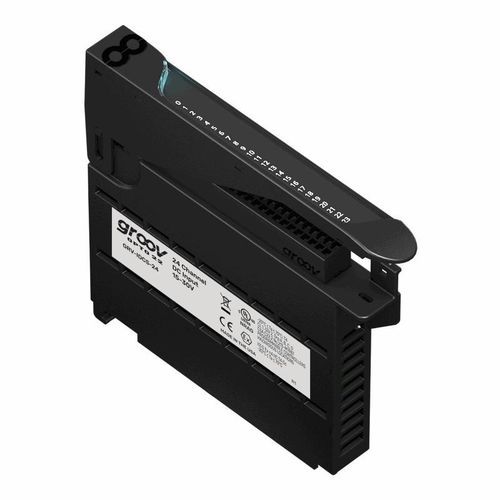

The GRV-IDCS-24 is a groov EPIC® digital DC input module designed to sense simple on/off status from field devices. It provides a cost-effective option for projects that only require binary (on/off) input detection.

Key features

• Senses on/off status for DC input devices (proximity switches, push buttons, auxiliary contacts) using simple digital logic.
• Module cover includes a status LED and a touch-sensitive pad; touching the pad causes the groov EPIC® processor to display module information such as specifications and a wiring diagram.
• Lower-cost “simple I/O” module option intended for applications that do not require counting, latching, or totalizing features.
• Mounts on a groov EPIC® chassis and works with a GRV-EPIC-PR1 processor and other groov I/O modules.
• Factory tested twice before shipment; most modules are covered by a lifetime warranty.

Applications

• OEM and machine design
• Process control and machine monitoring
• Power and energy monitoring
• Predictive maintenance and remote installations (water/wastewater, oil & gas)
• SCADA and IIoT applications

Notes

• If features such as latching and totalizing are required, see the GRV-IDC-24 model instead.

Technical specifications

• Number of channels: 24
• Input voltage: 15–30 VDC
• IEC input type: Type I
• Turn ON characteristic: 15 V, > 2 mA
• Turn OFF characteristic: 5 V, < 0.5 mA
• Input impedance: IEC inputs have non-linear impedance — see data sheet for typical V‑I curves
• Max. on/off frequency (DC input, 50% square wave): 1000 Hz (24 Vp-p)
• Isolation (field-to-logic): 300 V working, 1500 V transient (1 minute)
• Isolation (channel-to-channel): None
• Chassis power consumption: 1.2 W
• Minimum groov EPIC firmware version: 1.0.0
• Minimum PAC Project version: 10.0000
• Wire size: 28–14 AWG
• Wire strip length: 0.315–0.354 inches (8–9 mm)
• Torque, connector screw: 2.5 in‑lb (0.28 N·m)
• Torque, hold‑down screw: 3.5 in‑lb (0.4 N·m)
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Relative humidity (non‑condensing): 5–95%
• MTBF (minimum, 25 °C): 1.2 million hours
• Agency approvals: UL/cUL (Class 1, Div 2); CE: ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme; UKCA
• Warranty: Lifetime
