Analog input module GRV-ITMI-8
8-channel8 analog inputsEPIC

Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC
Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC
Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC - image - 2
Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC - image - 3
Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC - image - 4
Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC - image - 5
Analog input module - GRV-ITMI-8 - Opto 22 - 8-channel / 8 analog inputs / EPIC - image - 6
Add to favorites
Compare this product

Characteristics

Signal type
analog
Number of inputs/outputs
8-channel, 8 analog inputs
Bus standard
EPIC
Applications
voltage, for thermocouples, for temperature measurement
Other characteristics
configurable

Description

Overview

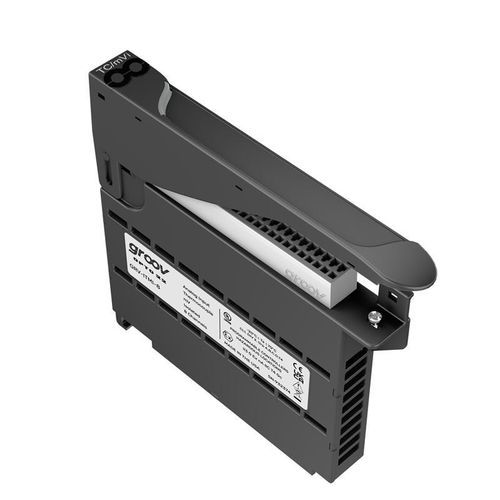

  • The GRV-ITMI-8 is an analog input module for the groov EPIC system that accepts thermocouple or millivolt (mV) signals and provides channel-to-channel isolation for high-accuracy measurements in industrial control and monitoring applications.


Key features

  • 8 independent, individually configurable input channels for thermocouples (ITS90 types B, E, J, K, N, R, S, T) or selectable mV ranges.
  • Channel-to-channel isolation (channels do not share common connections), enabling use with grounded sensors and reducing interference.
  • Selectable mV ranges: ±1200 mV, ±600 mV, ±300 mV, ±150 mV, ±75 mV, ±50 mV, ±25 mV.
  • On-module status LED and touch-sensitive pad that displays module information and wiring diagram on the groov EPIC processor.
  • Agency approvals: UL/cUL, ATEX, Low Voltage, EMC CE and UKCA; factory-tested with lifetime warranty for most modules.


Technical specifications

  • Number of channels: 8
  • Input types: Thermocouple (B, E, J, K, N, R, S, T) or millivolt (mV)
  • Millivolt input ranges: ±1200.0 mV, ±600.0 mV, ±300.0 mV, ±150.0 mV, ±75.0 mV, ±50.0 mV, ±25.0 mV
  • Over-range limits (±10%): ±1320.0 mV, ±660.0 mV, ±330.0 mV, ±165.0 mV, ±82.5 mV, ±55.0 mV, ±27.5 mV
  • Resolution: mV range / 1,048,576 (20 bits)
  • Accuracy (mV ranges): 0.1% of range (examples: ±1200 µV, ±600 µV, ±300 µV, ±150 µV, ±75 µV, ±50 µV, ±50 µV)
  • Thermocouple accuracies (default / user-calibrated / resolution): B: 5.0 °C / 3.0 °C @250 °C / 0.05 °C; E: 2.0 °C / 0.5 °C @0 °C / 0.05 °C; J: 2.0 °C / 0.5 °C @0 °C / 0.05 °C; K: 2.0 °C / 0.5 °C @0 °C / 0.05 °C; N: 3.0 °C / 0.8 °C @0 °C / 0.05 °C; R: 5.0 °C / 2.5 °C @250 °C / 0.05 °C; S: 5.0 °C / 3.0 °C @250 °C / 0.05 °C; T: 3.0 °C / 0.5 °C @0 °C / 0.05 °C
  • Cold-junction compensation: Automatic
  • Analog hardware filtering: -3 dB @ 14 Hz; -25 dB @ 60 Hz
  • Software filtering: Simple Moving Average (SMA) and Weighted Average; SMA window configurable (1–32 readings or extended settings)
  • Data refresh time: mV ranges = 100 ms; T/C ranges = 200 ms
  • Step response time: 16.5 ms × SMA value (e.g., 0.53 s @ 32 SMA; default SMA = 8)
  • Common mode rejection: > -120 dB
  • Input resistance: 100 MΩ
  • Quality indications: out-of-range, open thermocouple
  • Isolation (field-to-logic): 300 V working, 1500 V transient (1 minute)
  • Isolation (channel-to-channel): 300 V working, 1500 V transient (1 minute)
  • Chassis power consumption: 1.4 W
  • Operating temperature: -20 °C to +70 °C; Storage: -40 °C to +85 °C; Relative humidity (non-condensing): 5–95%
  • Wire size: 28–14 AWG; Wire strip length: 8–9 mm; Connector screw torque: 2.5 in-lb (0.28 N·m); Hold-down screw torque: 3.5 in-lb (0.4 N·m)
  • MTBF (25 °C): 1.2 Mhrs


Compliance & compatibility

  • Minimum groov EPIC firmware: 1.0.0
  • Minimum PAC Project version: 10.0000
  • Minimum CODESYS library package: 1.0.0.0
  • Agency approvals: UL/cUL (Class 1, Div 2), CE (ATEX Category 3, Zone 2), RoHS, DFARS, CB Scheme, UKCA
  • Warranty: Lifetime for most modules; module is factory-tested before shipment
