Digital output module GRV-OACS-12

12-OEPICautomation

Overview

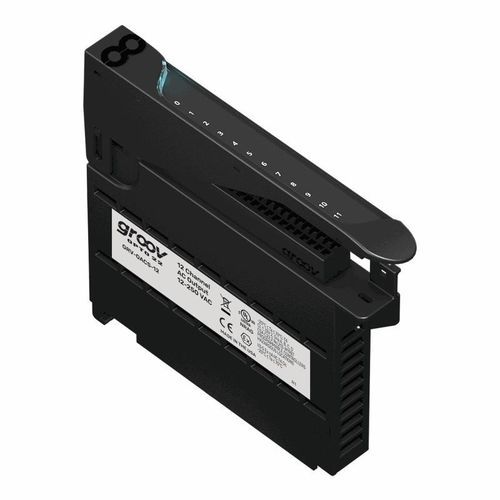

The GRV-OACS-12 is a groov EPIC® digital AC discrete output module providing 12 on/off channels for switching AC loads from 12 to 250 VAC. Designed for straightforward on/off applications, it features transient protection and zero-voltage switching to reduce switching transients.

Compatibility and operation

The module mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor. The cover includes an LED status indicator and a touch-sensitive pad that prompts the groov EPIC processor to display module information, specifications, and a wiring diagram.

Specifications

• Number of channels: 12
• Line voltage: 12–250 VAC
• Channel current rating: 0.5 A per channel
• Recommended maximum fuse or circuit breaker: 2 A 250 VAC per channel; 6 A 250 VAC common
• Minimum load current: 20 mA
• Output voltage drop: 1 V
• Off-state leakage at nominal voltage (60 Hz): 1.25 mA @ 240 VAC; 0.7 mA @ 120 VAC
• Peak blocking voltage: 500 V
• Operating frequency: 40 to 60 Hz, 400 Hz
• Turn-on time: ≤ 1/2 cycle (zero crossing)
• Turn-off time: ≤ 1/2 cycle (zero crossing)
• TPO Period: N/A for GRV-OACS-12
• Quality indications: None
• Isolation (field-to-logic): 300 V working, 1500 V transient (1 minute)
• Isolation (channel-to-channel): None
• Chassis power consumption: 1.3 W
• Minimum groov EPIC firmware version: 1.0.0
• Minimum PAC Project version: 10.0000
• Minimum library package for CODESYS version: 1.0.0.0
• Wire size: 28–14 AWG
• Wire strip length: 0.315–0.354 inches (8–9 mm)
• Torque, connector screw: 2.5 in-lb (0.28 N·m)
• Torque, hold-down screw: 3.5 in-lb (0.4 N·m)
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Relative humidity (non-condensing): 5–95%
• MTBF (minimum, 25 °C): 1.2 Mhrs
• Agency approvals: UL/cUL (Class 1, Div 2); CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA
• Warranty: Lifetime (Opto 22)

Applications and benefits

Suitable for industrial control panels and machine I/O where simple AC on/off switching is required. The module’s zero-voltage switching and transient protection help minimize electrical stress on loads and reduce interference with connected equipment.

Compliance and supply

The GRV-OACS-12 is UL/cUL listed and complies with ATEX, Low Voltage, EMC CE and UKCA directives. It is factory tested and covered by Opto 22's lifetime guarantee for applicable modules.
