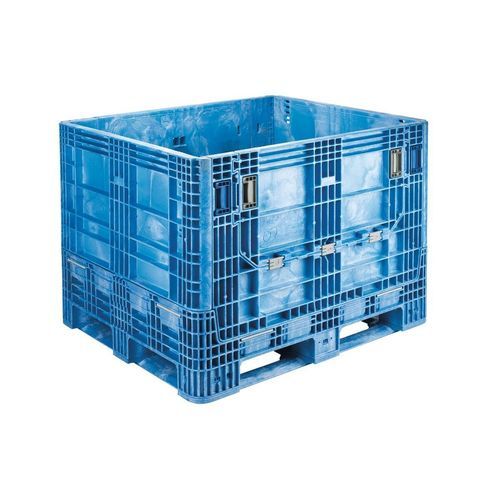

Industrial container HDR4048-34

storagefor logisticsplastic

Description The ORBIS HDR4048-34 is an extreme-duty, collapsible bulk container engineered for heavy industrial applications. Constructed from high-density polyethylene (HDPE) with solid sidewalls and a full-stringer base, it delivers extended service life, stable stacking and efficient handling. The unit collapses when empty to reduce return-transport costs and warehouse footprint. Optional long-side access doors provide interior access without disassembly. Improvements to this latest version maintain backward compatibility with existing HDR4048 containers while simplifying maintenance and expanding branding areas. Performance data refer to uniform static loads; results may vary with load distribution, handling methods, door configuration and temperatures outside 0 to 120 °F.

Improvements & design

• HDMP-inspired panel geometry for enhanced durability
• HDMP-style latches and hinges for proven reliability
• Retention clips replace fiberglass rods for easier maintenance
• Enhanced base-to-stringer interlock for improved structural integrity
• Expanded external areas for identification and branding
• Fully recyclable at end of service life

Key features

• Footprint: 40 × 48 × 34 in (standard 1200 × 1000 mm)
• Material: high-density polyethylene (HDPE) with solid sidewalls
• Full plastic stringer base with cross straps for stacking and handling
• Container capacity: up to 2,000 lb
• Collapsible design reduces return transport and storage volume
• Access doors: 0 standard or 2 optional long-side doors
• Backward compatible with existing HDR4048 containers
• Custom protective dunnage (ORBISHIELD) available

Technical specifications

• Weight: 158.3 lb
• Outside dimensions: 47.2 × 39.4 × 34.3 in
• Inside dimensions: 43.8 × 36.0 in
• Product clearance (inside height): 27.6 in
• Collapsed height: 13.5 in
• Container capacity: 2,000 lb
• Maximum loaded stack (static): 6 high
• Maximum loaded stack (dynamic): 3 high
• Return ratio: 2.5:1
• Internal volume: 25.2 cu ft
• 53 ft trailer quantity (assembled): 90 units
• 53 ft trailer quantity (collapsed): 240 units
• Reference temperature range: 0 °F to 120 °F (performance may vary outside)
