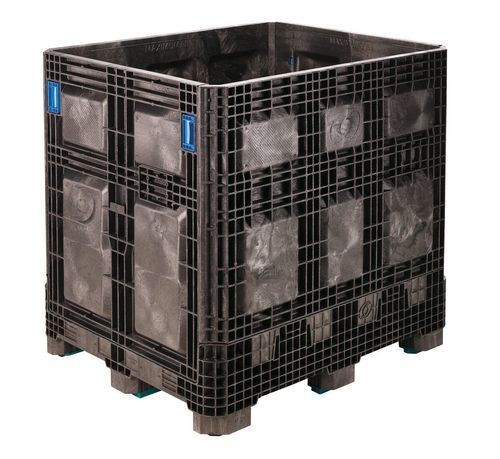

Bottle container HDMX4048-46

for the food industryHDPEwith lid

Product overview Optimize shipments and increase return efficiency with ORBIS MaxCube reusable bulk containers, engineered for beverage and primary packaging operations. The MaxCube (BulkPak HDMX4048-46) is structural-foam molded from high-density polyethylene (HDPE) to provide consistent weight and dimensional stability. It incorporates a rodless hinge and a collapsible design that maximizes cubic capacity and transport efficiency. The container collapses to a 4:1 return ratio, is compatible with common production-floor dumping equipment, and features smooth interior surfaces and an optional cover to help maintain product cleanliness.

Features

• Higher truck utilization: more bins per trailer
• Approximately 14% improvement in return efficiency versus comparable bins
• Stacks up to 8 high in a standard trailer when collapsed (with lids)
• Improved warehouse utilization; stacks up to 6 high when filled
• Field-repairable design to increase bin uptime
• Snap-in rodless panel hinges and replaceable wear plates for easy repair
• Ergonomic handling enhancements
• Optional 14 lb injection-molded top cap
• Optional stringer available
• Common applications: preforms, bottles, caps and closures

Technical specifications

• Weight: 140 lbs
• Dimensions (outside): 48 × 40 × 46 in
• Outside Length (in.): 48
• Outside Width (in.): 40
• Outside Height (in.): 46
• Inside Length (in.): 45
• Inside Width (in.): 37
• Product Clearance (in.): 40
• Collapsed Height (in.): 13
• Container Capacity: 1,200 lb
• Internal Volume: 40.4 cu. ft.
• Maximum Loaded Stack (Static): 6 High
• Maximum Loaded Stack (Dynamic): 2 High
• Return Ratio: 4:01
• 53 ft. Trailer Quantity (Assembled): 60
• 53 ft. Trailer Quantity (Collapsed): 240
