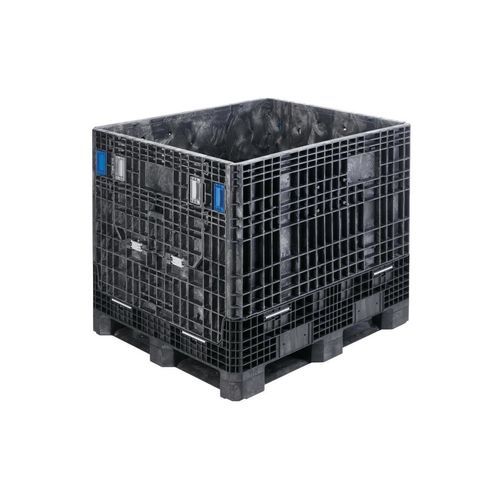

Industrial container GP4048-39

transportstoragefor logistics

Description
The medium-duty BulkPak GP4048-39 collapsible bulk container is designed to handle a wide variety of product sizes, shapes and weights for industrial material handling and distribution. The container maximizes shipping and storage efficiency by allowing more parts per container and by collapsing when empty to reduce return-transport costs and warehouse space. Structural-foam molding and consistent tare weight support reliable inventory and shipping planning. Custom protective dunnage is available. The container is fully recyclable at end of service life. Performance depends on load distribution, handling, access door configuration and temperatures outside 0–120°F.

Features

• Footprint: 40 x 48 x 39 in (outside)
• Structural-foam molded sidewalls and base
• High-density polyethylene (HDPE) construction
• Container capacity: 2,000 lb
• All-plastic construction eliminates rust risk
• Self-standing sidewall for safe, efficient assembly and collapse
• Two access doors on 40" side
• Base: all-plastic picture-frame bottom
• Deck options: solid or ventilated
• Sidewalls: solid
• Common applications: produce, caps/closures, plastic and rubber parts

Additional information (table)
Weight (tare): 151.7 lbs
Dimensions (outside): 48 × 40 × 39.1 in
Outside Length (in.): 48
Outside Width (in.): 40
Outside Height (in.): 39.1
Inside Length (in.): 45
Inside Width (in.): 37
Prod Clearance (in.): 32.7
Collapsed Height (in.): 13.5
Container Capacity (lb.): 2000
Internal Volume (cu. ft.): 31.5
Maximum Loaded Stack (Static): 5 high
Maximum Loaded Stack (Dynamic): 2 high
53 ft. Trailer Qty (Assembled): 60
53 ft. Trailer Qty (Collapsed): 240

Technical specifications

• Model: GP4048-39
• Footprint: 40 x 48 x 39 in (outside height ~39.1 in)
• Material: High-density polyethylene (HDPE)
• Manufacturing: Structural-foam molded sidewalls and base
• Base type: All-plastic picture-frame bottom
• Deck options: Solid or ventilated
• Sidewalls: Solid, self-standing for assembly/collapse
• Access: 2 access doors on 40" side (configurations may vary)
• Container capacity: 2,000 lb
• Internal volume: 31.5 cu ft
• Tare weight: 151.7 lb
• Collapsed height: 13.5 in
• Maximum loaded stack (static): 5 high
• Maximum loaded stack (dynamic): 2 high
• 53 ft trailer capacity assembled: 60 units; collapsed: 240 units
• Applications: produce, caps/closures, plastic and rubber parts
• Recyclability: Fully recyclable at end of service life
