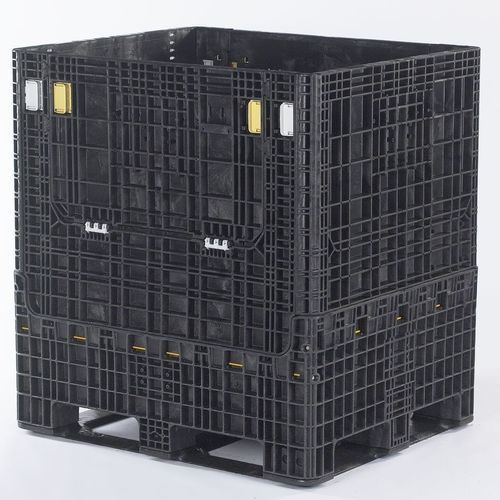

Container for the automotive industry HDR4048-50

for industryfor small partsplastic

Description The heavy-duty BulkPak 4048 HDR series is designed for rugged industrial applications. These reusable containers are structural-foam molded in high-density polyethylene (HDPE) for long service life, provide secure product protection, collapse when empty to reduce return-transport costs and save warehouse space, and stack securely during storage and shipping. Large access door option available for interior access. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at end of service life. All dimensions and specifications are approximate; performance is based on uniform static loads and may be affected by load distribution, handling methods, number/type of access doors, and temperatures beyond 0 to 120 F.

Features

• Footprint: 40 x 48 x 50 in
• Structural-foam molded in high-density polyethylene (HDPE)
• Container capacity: 1,750 lb
• Access doors: 0 doors or 2 doors on the long side
• Base: Full plastic stringer with cross straps
• Deck: Solid deck
• Sidewalls: Solid

Popular applications

• Automotive components
• Bearings
• Hardware
• Industrial equipment
• Metal parts
• Plastics and rubber parts
• Resin, powder, and tools

Product details (table) Weight: 204.3 lbs
Dimensions: 47.2 × 39.4 × 49.9 in
Outside Length (in.): 47.2
Outside Width (in.): 39.4
Outside Height (in.): 49.9
Inside Length (in.): 44
Inside Width (in.): 36
Prod Clearance (in.): 43.4
Collapsed Height (in.): 21.4
Container Capacity (lb.): 1750
Weight (lb.): 204.3
Maximum Loaded Stack (Static): 4 High
Maximum Loaded Stack (Dynamic): 2 High
Return Ratio: 2.3:1
Internal Volume (cu. ft.): 39.8
53 ft. Trailer Qty (Assembled): 60
53 ft. Trailer Qty (Collapsed): 150

Technical specifications

• Model: HDR4048-50
• Material: High-density polyethylene (structural-foam molded)
• Footprint: 40 x 48 x 50 in
• Container capacity: 1,750 lb (approx.)
• Empty/collapsed height: 21.4 in (collapsed)
• Stacking: Up to 4 high (static), 2 high (dynamic)
• Internal volume: 39.8 cu ft
• Typical assembled trailer qty: 60; collapsed trailer qty: 150
• Base: Full plastic stringer with cross straps; solid deck and solid sidewalls
• Recyclable at end of service life
