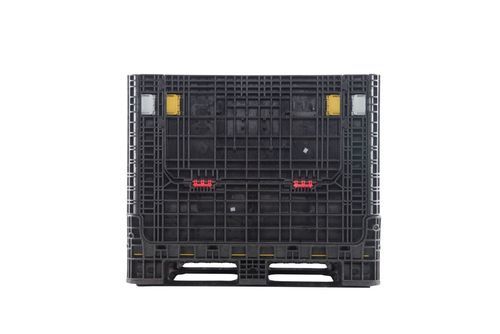

Container for the automotive industry HDR4048-39

for powdersindustrialplastic

Description The heavy-duty BulkPak 4048 HDR series was designed for rugged applications. These reusable containers are made of tough, durable high-density polyethylene (HDPE) for long-life performance under harsh conditions and provide excellent product protection. Bulk containers collapse when empty to reduce return transportation costs and save warehouse space. During storage and shipping, these bulk bins stack securely atop each other. Large access door for interior access. Pallet boxes provide the strength and durability required in modern material handling and distribution systems. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at the end of their service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by the distribution of load, handling methods, number and type of access doors, and temperatures beyond the range of 0 to 120 degrees Fahrenheit.)

• 40 x 48 x 39 footprint
• Structural-foam molded in high-density polyethylene (HDPE)
• Container capacity: 2,000 lbs
• Access Doors: 0 doors or 2 doors on the long side
• Base: Full plastic stringer with cross straps
• Deck: Solid deck with drain holes
• Sidewalls: Solid
• Popular applications: automotive components, bearings, hardware, industrial equipment, metal parts, plastics and rubber parts, resin, powder, and tools

Technical characteristics / specifications

• Weight: 170.3 lbs
• Dimensions: 47.2 × 39.4 × 39.4 in
• Outside Length (in.): 47.2
• Outside Width (in.): 39.4
• Outside Height (in.): 39.4
• Inside Length (in.): 43.8
• Inside Width (in.): 36
• Prod Clearance (in.): 32.9
• Collapsed Height (in.): 13.5
• Container Capacity (lb.): 2000
• Weight (lb.): 170.3
• Maximum Loaded Stack (Static): 5 High
• Maximum Loaded Stack (Dynamic): 2 High
• Return Ratio: 2.9:1
• Internal Volume (cu. ft.): 30.0
• 53 ft. Trailer Qty (Assembled): 60
• 53 ft. Trailer Qty (Collapsed): 240
