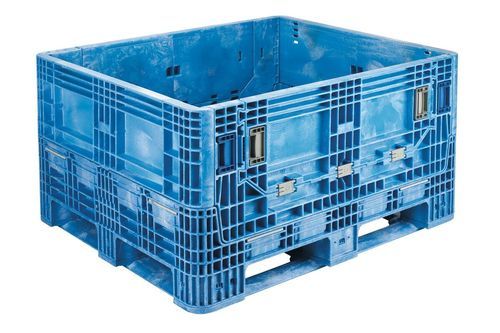

Container for the automotive industry HDR4048-25

industrialstoragefor logistics

Product overview
The BulkPak HDR4048-25 by ORBIS is an extreme-duty collapsible bulk container designed for industrial and supply-chain environments. Constructed in durable HDPE with solid sidewalls and a full-stringer plastic base, it supports efficient stacking, handling and long service life. Containers collapse when empty to reduce return-transport costs and save warehouse space. Optional long-side access doors provide interior access for loading and unloading.

Improvements and options
Design enhancements include an HDMP-inspired panel layout, HDMP-style latches and hinges, retention clips replacing fiberglass rods for easier maintenance, an improved base-to-stringer interlock, and expanded branding areas. The HDR4048-25 remains fully backward compatible with existing HDR4048 containers. Custom ORBIShield protective dunnage and other accessories are available. Containers are fully recyclable at end of service life.

Key features

• Footprint: 40 × 48 × 25 in (standard 1200 × 1000 mm)
• Durable HDPE construction with solid sidewalls
• Container capacity: up to 2,000 lb
• Access doors: 0 or 2 optional long-side doors
• Base: full plastic stringer with cross straps
• Deck: solid deck with drain holes
• Collapsible design for reduced return-transport costs and warehouse space savings
• Full backward compatibility with existing HDR4048 containers
• Custom protective dunnage available
• Fully recyclable at end of service life

Popular applications

• Industrial handling and storage
• Food and beverage distribution
• Automotive supply chains
• Export and closed-loop logistics
• Typical contents: automotive components, bearings, hardware, industrial equipment, metal parts, plastics and rubber parts, resins, powders, tools

Warning / Conditions
(All dimensions and specifications are approximate. Performance characteristics are based on uniformly distributed static loads and may be affected by load distribution, handling methods, number and type of access doors, and temperatures outside the 0 °F to 120 °F range.)

Characteristics / technical specifications

• Weight: 130.7 lbs
• Dimensions (outside): 47.2 × 39.4 × 25 in
• Outside Length (in.): 47.2
• Outside Width (in.): 39.4
• Outside Height (in.): 25
• Inside Length (in.): 44
• Inside Width (in.): 36
• Prod Clearance (in.): 19.4
• Collapsed Height (in.): 13.5
• Container Capacity (lb.): 2000
• Weight (lb.): 130.7
• Internal Volume (cu. ft.): 17.8
• Maximum Loaded Stack (Static): 6 High
• Maximum Loaded Stack (Dynamic): 4 High
• Return Ratio: 1.8:1
• 53 ft. Trailer Qty (Assembled): 120
• 53 ft. Trailer Qty (Collapsed): 240
