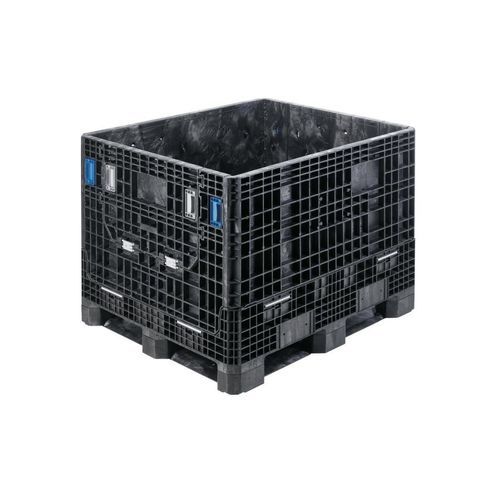

Container for food applications GP4048-34

for small partsplasticHDPE

Description
The medium-duty BulkPak 4048 GP Series GP4048-34 is a collapsible plastic bulk container engineered to handle a wide range of product sizes, shapes and weights. Designed for material handling and distribution, it increases parts-per-container throughput, reduces transport trips and improves storage efficiency. The structural-foam molded HDPE construction provides a consistent tare weight and reliable stacking performance. Containers collapse for return transport savings and stack securely when full. Custom protective dunnage is available for all ORBIS BulkPak containers. These plastic containers are fully recyclable at end of service life. (All dimensions and specifications are approximate. Performance characteristics are based on uniform static loads and may be affected by load distribution, handling methods, number and type of access doors, and temperatures outside the range of 0 to 120 °F.)

Features

• Footprint: 40 x 48 x 34 in
• Structural-foam molded sidewalls and base
• High-density polyethylene (HDPE) construction
• Container capacity: 2,000 lb (uniform static load)
• All-plastic construction eliminates risk of rust
• Self-standing sidewalls for safe, efficient assembly and collapse
• 2 access doors on 40 in side
• Base: all-plastic picture-frame bottom
• Deck options: solid or ventilated
• Sidewalls: solid

Popular applications

• Produce
• Caps and closures
• Plastic and rubber parts

Product Details (table)
Weight: 139.7 lbs
Dimensions (Outside × Width × Height): 48 × 40 × 34.1 in
Outside Length (in.): 48
Outside Width (in.): 40
Outside Height (in.): 34.1
Inside Length (in.): 45
Inside Width (in.): 37
Prod Clearance (in.): 27.7
Collapsed Height (in.): 13.5
Container Capacity (lb.): 2000
Weight (lb.): 139.7
Maximum Loaded Stack (Static): 6 High
Maximum Loaded Stack (Dynamic): 3 High
Return Ratio: 2.7:1
53 ft Trailer Qty (Assembled): 90
53 ft Trailer Qty (Collapsed): 240

Technical specifications

• Model: GP4048-34
• Series: BulkPak 4048 GP Series
• Construction material: High-density polyethylene (HDPE)
• Manufacturing: Structural-foam molded sidewalls and base
• Base type: All-plastic picture-frame bottom
• Deck options: Solid or ventilated
• Sidewalls: Solid, self-standing for assembly and collapse
• Access: 2 access doors on 40 in side
• Container capacity: 2,000 lb (uniform static load)
• Empty (collapsed) height: 13.5 in
• Operational temperature guidance: performance referenced for 0 to 120 °F
• Maximum static stack: 6 high; maximum dynamic stack: 3 high
• Return ratio: 2.7:1
• 53 ft trailer capacity (assembled): 90 units; (collapsed): 240 units
• End-of-life: Fully recyclable
