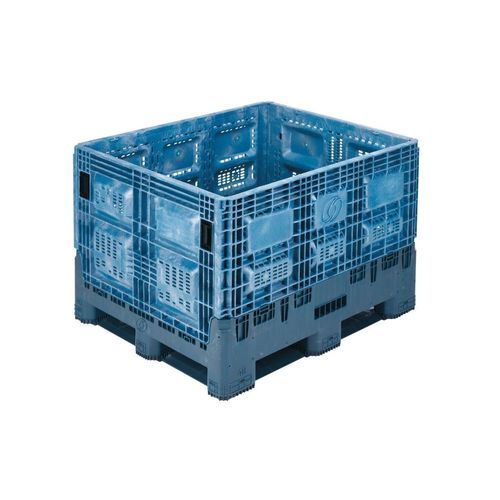

Agricultural container AG4048-32

HDPEstackablelow-profile

Description
The AG4048-32 collapsible bulk container is designed for handling, storing and transporting a wide range of agricultural products. Its space-efficient design increases load density, reduces the number of trips and lowers return-transport costs. The container is fully recyclable at end of life.

Features

• High-density polyethylene
• Structural-foam ventilated sidewalls
• Single piece high pressure molded base with flow-through design
• High pressure snap in picture frame stringer
• Consistent tare weight that improves inventory and shipping efficiency
• Collapse when empty for reduced return transportation costs and warehouse space savings
• Bins stack securely atop each other when full or collapsed
• Self-standing sidewall for safe, efficient assembly and collapse
• Also available in 46” height

Additional information (table)
Weight: 118 lbs
Dimensions: 48 × 40 × 32 in
Outside Length (in.): 48
Outside Width (in.): 40
Outside Height (in.): 32
Inside Length (in.): 45
Inside Width (in.): 37
Product Clearance (in.): 25.7
Collapsed Height (in.): 13.5
Load Capacity (lb.): 1500
Weight (lb.): 118
Internal Volume (cu. ft.): 25.5
Return Ratio: 2.32:1
Maximum Loaded Stack (Static): 6 High
Maximum Loaded Stack (Dynamic): 3 High
53 ft. Trailer Qty (Collapsed): 240
53 ft. Trailer Qty (Assembled): 90

Technical specifications

• Material: High-density polyethylene
• Sidewalls: Structural-foam ventilated
• Base: Single piece high pressure molded base with flow-through design
• Stringer: High pressure snap in picture frame stringer
• Tare Weight: Consistent tare weight (118 lbs)
• Collapsed Height: 13.5 in
• Assembled Dimensions: 48 × 40 × 32 in
• Internal Dimensions: 45 × 37 in (inside length × inside width)
• Internal Volume: 25.5 cu. ft.
• Load Capacity: 1,500 lb
• Return Ratio: 2.32:1
• Maximum Loaded Stack (Static): 6 High
• Maximum Loaded Stack (Dynamic): 3 High
• 53 ft Trailer Qty (Collapsed): 240 units
• 53 ft Trailer Qty (Assembled): 90 units
• Collapseable: Yes — collapses when empty for reduced return transportation costs
• Stacking: Bins stack securely when full or collapsed
• Recyclable: Fully recyclable at end of life
